Resin Anchor Rod VMZ-A

Application

Anchor Rod for push-through and put-before mounting in concrete tensile zones in M&E services and plant construction (for anchoring heavy loads).
Suitable for attaching pipelines, channels, brackets, etc. in closed rooms - except for damp locations.
(Stainless steel version available on request).

  • No special drill required
  • Heavy loads
  • Small edge and centre distance
  • Approved for use under seismic action according to the performance category C1 and C2 (M10 - M16)

Scope of delivery

Pre-assembled with washer and hexagon nut.

Installation

1.
Drill hole according to min. setting depth vertically to the surface.
2.
Careful cleaning of drill hole with Steel brush and Blow-Out Pump.
3.
Screw Mixing Nozzle onto the cartridge; foreshots to be removed and fill 2/3 of drill hole with resin starting from botton of the hole.
4.
Drive the anchor manually into plastered borehole up to its embedment mark.
5.
When reaching the embedment mark, plaster must be apparent.
6.
Respect hardening time, when tighten the anchor with instructed torque.

Detailed assembly instruction is attached to the product.

Technical Data

Typ M8
50
M10
60
M12
80
M12
125
M16
125
Perm. load 1) tension C20/25 2) [kN] 5.8 7.6 11.7 22.9 22.9
Perm. load 1) tension C25/30 2) [kN] 6.5 8.5 13.1 25.6 25.6
C30/37 2) [kN] 7.1 9.3 14.3 27.1 28.1
C40/50 2) [kN] 8.2 10.8 16.6 27.1 32.4
C50/60 2) [kN] 8.6 11.9 18.5 27.1 36.2
Perm. load 1) oblique V C20/25 2) [kN] 8.0 12.0 19.4 19.4 36.0
≥ C30/37 2) [kN] 8.0 12.0 19.4 19.4 36.0
Perm. bending moments M [Nm] 17.1 34.3 60 60 152
Min. thickness of component hmin ≥ [mm] 80 100 110 160 170
Charact. centre distance Scr,N [mm] 150 180 240 375 375
Charact. edge distance Ccr,N [mm] 75 90 120 187,5 187,5
Min. centre distance smin [mm] 40 40 40 50 60
Min. egde distance cmin [mm] 40 40 50 50 60
Effective anchoring depth hef [mm] 50 60 80 125 125
Nominal diameter of drill do [mm] 10 12 14 14 18
Depth of bore hole h0 [mm] 55 65 85 130 133
Anchoring torque Tinst [Nm] 10 15 25 30 50
Loads under fire exposure
Perm. load R 30 perm. F [kN] 1.69 3.38 5.8 5.8 7.62
Perm. load R 60 perm. F [kN] 0.07 0.83 3.11 3.11 5.81
Perm. load R 90 perm. F [kN]    1.14 1.14 4.01
Perm. load R 120 perm. F [kN]      3.11

1)
Loads for single anchors without influence of edge and centre distances, if constant temperature of 50°C and und currently 80°C is not exceeded.
2)
Cracking concrete 50°C/80°C

Permissible loads according to EN 1992-4 without influence of centre and edge distances. Overall safety factor is taken into account ( YM und YF ). For the dimensioning, respect the data of the approval notification.

Material:
Steel, galvanised

Approvals / Conformity

Sikla Approval ETA 10/0260

ETA 10/0260 PDF | 6.6 MB Fire resistance PDF | 1.1 MB

1) Delivery date on request - goods are procured on an order-related basis.

TypeThread
connection
tfix = Max.
usable length
[mm]
Total length
[mm]
W
[kg]
Quantity
[pack]
Part
number

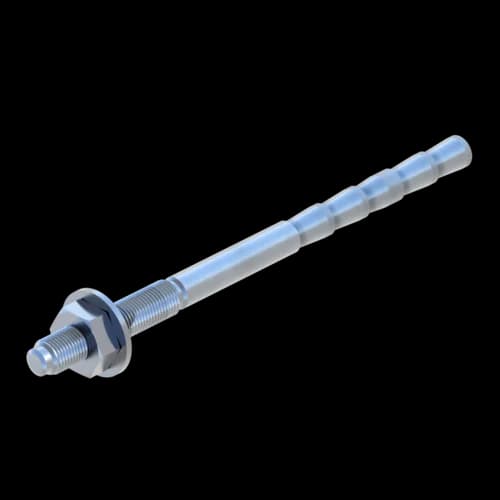

VMZ-A 50 M8-15/80 1)M815800.0410 190712
VMZ-A 50 M8-30/95 1)M830950.0410 190721

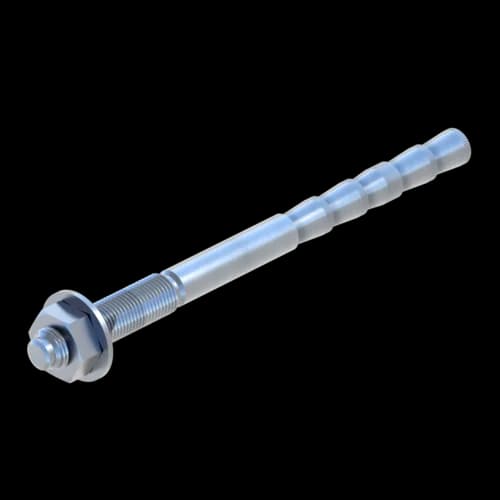

VMZ-A 60 M10-10/85M1010850.0610 190739
VMZ-A 60 M10-30/105 1)M10301050.0610 190748
VMZ-A 60 M10-60/135 1)M10601350.0910 190757
VMZ-A 80 M12-10/110M12101100.1210 190766
VMZ-A 80 M12-25/125M12251250.1310 190775
VMZ-A 80 M12-50/150 1)M12501500.1510 190784
VMZ-A 125 M12-25/170 1)M12251700.1810 117350

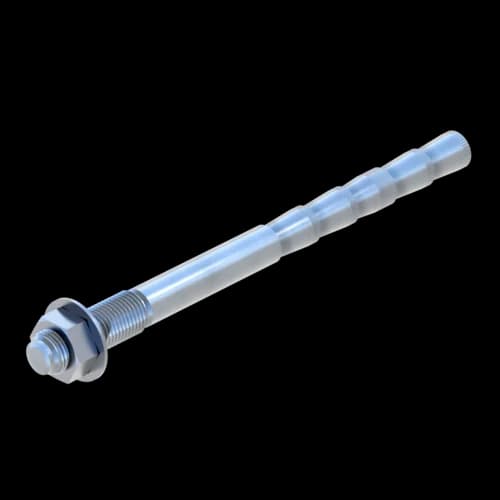

VMZ-A 125 M16-30/180 1)M16301800.2810 190793
