Product catalogue
24 out of 102 results
Filters
24 out of 102 results
Adapter Plate AP HCP
4 Variants
Interface element to enable the connection of standard endplates of Beam Brackets TKO F80 or F100, TKO 100 or 120 to primary steel with flange width >120 mm.

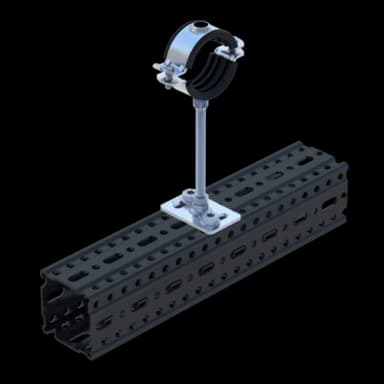

Assembly Group BG14 F 80 M10 HCP
9 Variants
An Assembly Group containing components to make up a permanent pipe connection with the pipe clamp Stabil D-3G. The Assembly Group is designed for use with the Beam Section TP F 80. It is connected using the Self Forming Screw FLS F, and the height is adjusted via the Threaded Rod M10. The pipe clamp with sound absorption lining ensures sound absorption in accordance with DIN 4109.

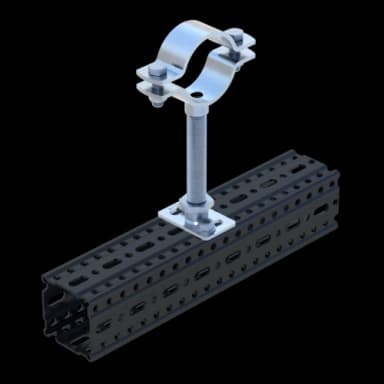

Assembly Group BG14 F 80-1/2'' HCP
9 Variants
An Assembly Group containing components to make up a permanent pipe connection with the heavy Pipe Clamp Stabil I-1/2'. The Assembly Group is designed for use with the Beam Section TP F 80. It is connected using the Self Forming Screw FLS F, and the height is adjusted via the Threaded Tube 1/2'.

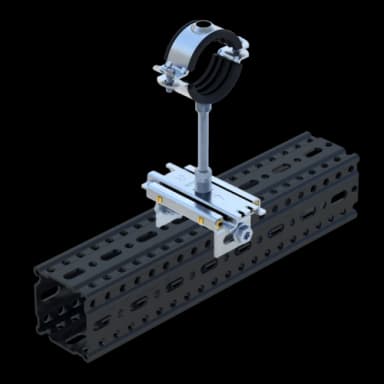

Assembly Group BG15 F 80 M10 HCP
9 Variants
An Assembly Group for use as a guided support with the pipe clamp Stabil D-3G. The Assembly Group is designed for use with the Beam Section TP F 80. It is connected using the Self Forming Screw FLS F, and the height is adjusted via the Threaded Rod M10.

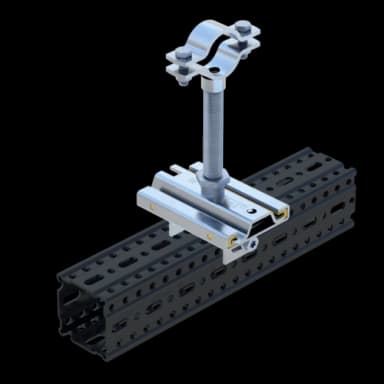

Assembly Group BG15 F 80-1/2'' HCP
9 Variants
An Assembly Group for use as a guided support with the heavy Pipe Clamp Stabil I-1/2'. The Assembly Group is designed for use with the Beam Section TP F 80. It is connected using the Self Forming Screw FLS F, and the height is adjusted via the Threaded Tube 1/2'. From DN 65 upwards, the Slide Set GS F 80 1G2 is used to create two pipe supports.
Assembly Group BG16 F100-1/2'' HCP
9 Variants
An Assembly Group containing components to make up a permanent pipe connection with the heavy Pipe Clamp Stabil I-1/2'. The Assembly Group is designed for use with the Beam Section TP F 100. It is connected using the Self Forming Screw FLS F, and the height is adjusted via the Threaded Tube 1/2'.
Assembly Group BG17 F100-1/2'' HCP
9 Variants
An Assembly Group for use as a guided support with the heavy Pipe Clamp Stabil I-1/2'. The Assembly Group is designed for use with the Beam Section TP F 100. It is connected using the Self Forming Screw FLS F, and the height is adjusted via the Threaded Tube 1/2'. From DN 65 upwards, the Slide Set GS F 100 1G2 is used to create two pipe supports.
Assembly Group BG22 F 80 HCP
11 Variants
An Assembly Group for the fastening of pipes without complex requirements and without heat insulation on siFramo F 80 sections. By adapting the hexagon nuts supplied, both guided supports and fixed points can be created. The U Bolt fasteners supplied vary depending on the required clamping range.
Assembly Group BG22 F100 HCP
14 Variants
An Assembly Group for the fastening of pipes without complex requirements and without heat insulation on siFramo F 100 sections. By adapting the hexagon nuts supplied, both guided supports and fixed points can be created. The U Bolt fasteners supplied vary depending on the required clamping range.

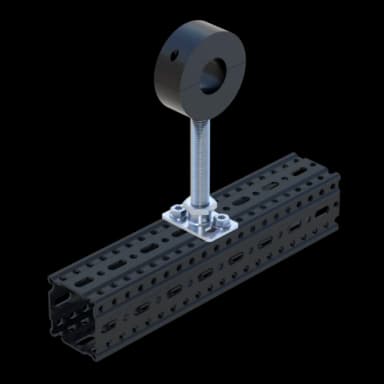

Assembly Group BG44 F 80-1/2'' HCP
9 Variants
An Assembly Group containing components to make up a permanent pipe connection with the insulated Chilled Water Clamp RB for chiller plants and cool water systems. The Assembly Group is designed for use with the Beam Section TP F 80. It is connected using Self Forming Screw FLS F, and the height is adjusted via the Threaded Tube 1/2'.

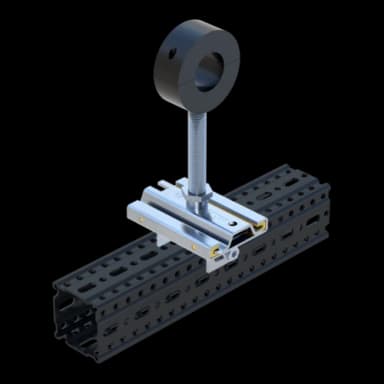

Assembly Group BG45 F 80-1/2'' HCP
9 Variants
An Assembly Group for use as a guided support with the insulated Chilled Water Clamp RB for chiller plants and cool water systems. The Assembly Group is designed for use with the Beam Section TP F 80. It is connected using Self Forming Screw FLS F, and the height is adjusted via the Threaded Tube 1/2'.
Assembly Group BG49 F100-1/2'' HCP
9 Variants
An Assembly Group containing components to make up a permanent pipe connection with the insulated Chilled Water Clamp RB for chiller plants and cool water systems. The Assembly Group is designed for use with the Beam Section TP F 100. It is connected using Self Forming Screw FLS F, and the height is adjusted via the Threaded Tube 1/2'.
Assembly Group BG50 F100-1/2'' HCP
9 Variants
An Assembly Group for use as a guided support with the insulated Chilled Water Clamp RB for chiller plants and cool water systems. The Assembly Group is designed for use with the Beam Section TP F 100. It is connected using Self Forming Screw FLS F, and the height is adjusted via the Threaded Tube 1/2'.
Assembly Group BG51 F 80 HCP
1 Variant
An Assembly Group for the supporting of pipes without complex requirements and without heat insulation. This allows free sliding of the pipe in all dimensions on the Beam Section TP F 80.
Assembly Group BG52 F 80/F100 HCP
14 Variants
An Assembly Group for the creation of guided supports for pipes without complex requirements and generally without insulation. As an alternative to U-bolts, this U-clamp is ideal for space-saving, direct assembly on the supporting structure. The slide plate reduces the friction between the pipe and supporting structure (siFramo sections).
A galvanic separation between the pipe and U-clamp and the supporting structure is achieved through the plastic linings and slide plate, meaning that VA pipes can also be secured, for example.
Assembly Group BG54 F100 HCP
1 Variant
An Assembly Group for the supporting of pipes without complex requirements and without heat insulation on siFramo beam sections. This allows free sliding of the pipe in all directions on the Beam Section TP F 100.
Assembly Set MS 5P A4
7 Variants
Element for connecting Beam Bracket TKO, Angled Beam Bracket SKO, End Support WBD or Pivot Joint GE F to a beam section.

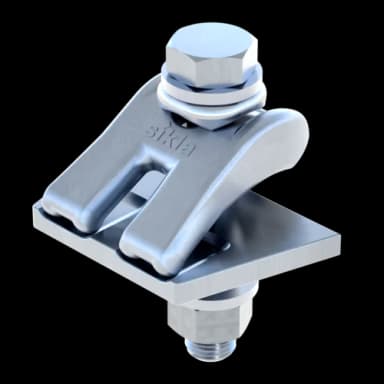

Assembly Set MS 5P MA S HCP
2 Variants
The Assembly Set MS 5P is used to connect a Beam Bracket TKO, Angled Beam Bracket SKO, End Support WBD or Pivot Joint GE F to a beam section. The Stop Plate assists with professional installation.
Assembly Set MS 5P S HCP
3 Variants
Element for connecting Beam Bracket TKO, Angled Beam Bracket SKO, End Support WBD or Pivot Joint GE F to a beam section.

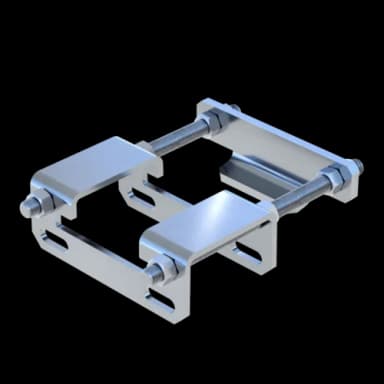

Axial Stop AS F 80 HCP
1 Variant
Modification of siMotec pipe shoes to a single-sided axial stop, for use with siFramo F 80 profiles. Using the Axial stop, the pipe shoe can move axially through the pipe to a predefined degree of displacement, with restricted limits in one axial direction. .
Axial Stop AS F100 HCP
1 Variant
Modification of siMotec pipe shoes to a single-sided axial stop, for use with siFramo F 100 profiles. Using the Axial stop, the pipe shoe can move axially through the pipe to a predefined degree of displacement, with restricted limits in one axial direction. .

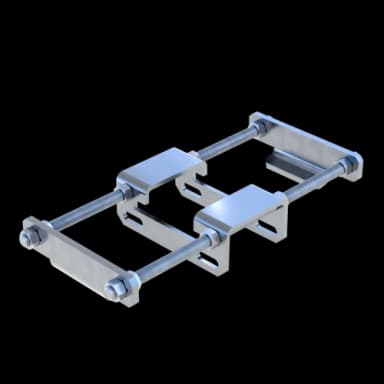

Axial Stop Variable VAS F 80 HCP
1 Variant
Modification of the siMotec pipe shoes to a double-sided variable axial stop, for use with siFramo F 80 profiles. Using the Axial stop, the pipe shoe can move axially through the pipe to a predefined degree of displacement, with restricted limits in both axial directions.
Axial Stop Variable VAS F100 HCP
1 Variant
Modification of the siMotec pipe shoes to a double-sided variable axial stop, for use with siFramo F100 profiles. Using the Axial stop, the pipe shoe can move axially through the pipe to a predefined degree of displacement, with restricted limits in both axial directions.

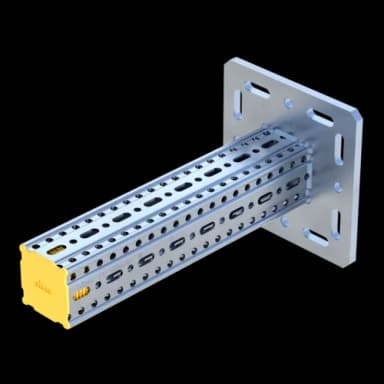

Beam Bracket TKO F 80 HCP
2 Variants
Galvanised hollow-box-section with welded end-plate to serve as cantilever arm. May be used as a crossbar when combined with End Support STA/End Support WBD and 4 x Self Forming Screw FLS.
