Group: 1102

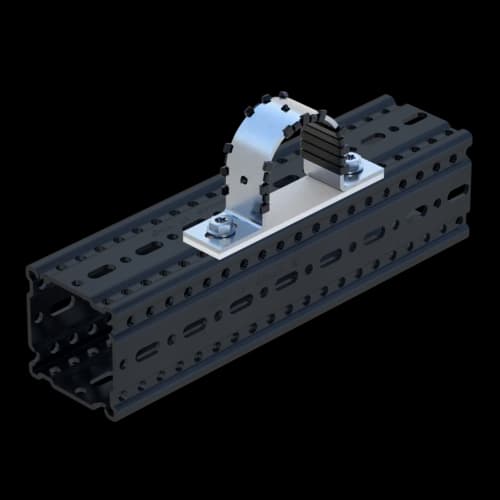

Assembly group for creating guided supports for pipes without complex requirements and generally without insulation
Space-saving alternative to U-bolts for direct assembly on the supporting structure, with slide plate reducing friction
Plastic linings and slide plate provide galvanic separation, allowing secure fastening of VA pipes

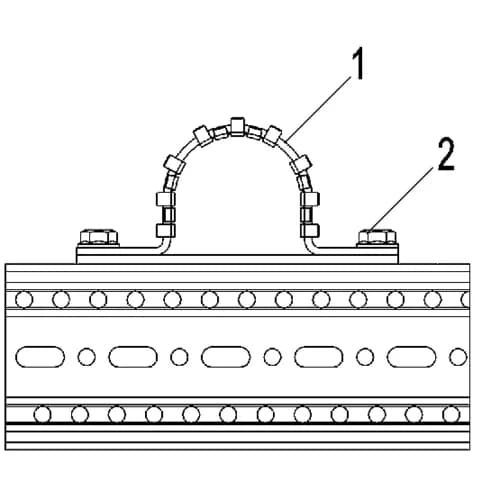

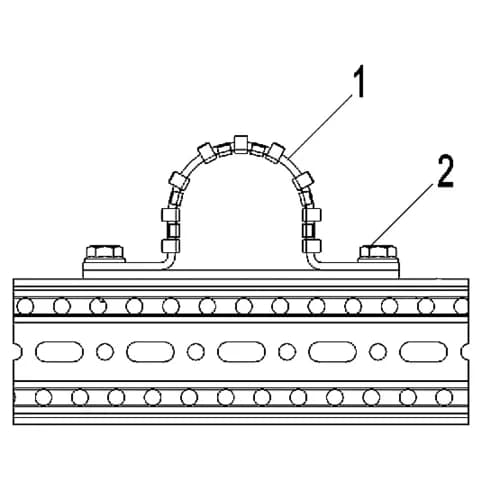

The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.
An Assembly Group for the creation of guided supports for pipes without complex requirements and generally without insulation. As an alternative to U-bolts, this U-clamp is ideal for space-saving, direct assembly on the supporting structure. The slide plate reduces the friction between the pipe and supporting structure (siFramo sections). A galvanic separation between the pipe and U-clamp and the supporting structure is achieved through the plastic linings and slide plate, meaning that VA pipes can also be secured, for example.
Certification
Max. temperature | 90 °C |
Min. temperature | -20 °C |
Primary element material | steel |
Sliding element material | PA 6.0, POM |
Surface finish | HCP |
Corrosion protection class | C4 |
Software
This product is available in the following software.
Info | Type | DN | Weight | Quantity | Part number | |
| BG52 F 80/100 DN 15 HCP | DN 15 (1/2") | 0,280 kg/pcs. | 1 pcs. | 114656 | ||
| BG52 F 80/100 DN 20 HCP | DN 20 (3/4") | 0,290 kg/pcs. | 1 pcs. | 114657 | ||
| BG52 F 80/100 DN 25 HCP | DN 25 (1") | 0,320 kg/pcs. | 1 pcs. | 114658 | ||
| BG52 F 80/100 DN 32 HCP | DN 32 (1 1/4") | 0,340 kg/pcs. | 1 pcs. | 114659 | ||
| BG52 F 80/100 DN 40 HCP | DN 40 (1 1/2") | 0,360 kg/pcs. | 1 pcs. | 114660 | ||
| BG52 F 80/100 DN 50 HCP | DN 50 (2") | 0,410 kg/pcs. | 1 pcs. | 114661 | ||
| BG52 F 80/100 DN 65 HCP | DN 65 (2 1/2") | 0,480 kg/pcs. | 1 pcs. | 114662 | ||
| BG52 F 80/100 DN 80 HCP | DN 80 (3") | 0,520 kg/pcs. | 1 pcs. | 114663 | ||
| BG52 F 80/100 DN 100 HCP | DN 100 (4") | 0,610 kg/pcs. | 1 pcs. | 114664 | ||
| BG52 F 80/100 DN 125 HCP | DN 125 (5") | 0,710 kg/pcs. | 1 pcs. | 114665 | ||
| BG52 F 80/100 DN 150 HCP | DN 150 (6") | 0,830 kg/pcs. | 1 pcs. | 114666 | ||
| BG52 F 80/100 DN 200 HCP | DN 200 (8") | 0,990 kg/pcs. | 1 pcs. | 114667 | ||
| BG52 F 80/100 DN 250 HCP | DN 250 (10") | 1,200 kg/pcs. | 1 pcs. | 114668 | ||
| BG52 F 80/100 DN 300 HCP | DN 300 (12") | 1,340 kg/pcs. | 1 pcs. | 114669 | ||
