Assembly Group BG50 F100-1/2'' HCP
Group: 1102

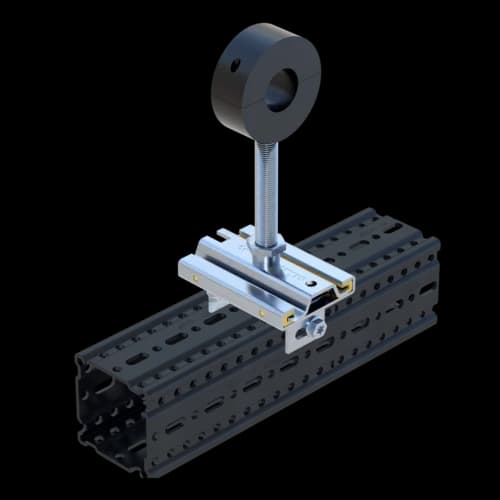

Assembly group for use as a guided support with insulated Chilled Water Clamp RB for chiller plants and cool water systems
Designed for use with Beam Section TP F 100, connected via Self Forming Screw FLS F
Height adjustment via Threaded Tube 1/2'
Overview of Types
General Information
An Assembly Group for use as a guided support with the insulated Chilled Water Clamp RB for chiller plants and cool water systems. The Assembly Group is designed for use with the Beam Section TP F 100. It is connected using Self Forming Screw FLS F, and the height is adjusted via the Threaded Tube 1/2'.
Certification
Technical specifications
Max. temperature | 105 °C |
Min. temperature | -50 °C |
Thermal Conductivity λ {0°C} | λ 0,045 W/Mk |
Fire Performance | B2 according to DIN 4102 |
Bulk Density | 250,00 kg/m³ |
Water vapour diffusion resistance factor | µ 1200 |
Material base body | steel |
Material insulation body | PUR |
Material connecting element | steel |
Surface | HCP |
Corossion class | C4 |
Software
This product is available in the following software.
Installation

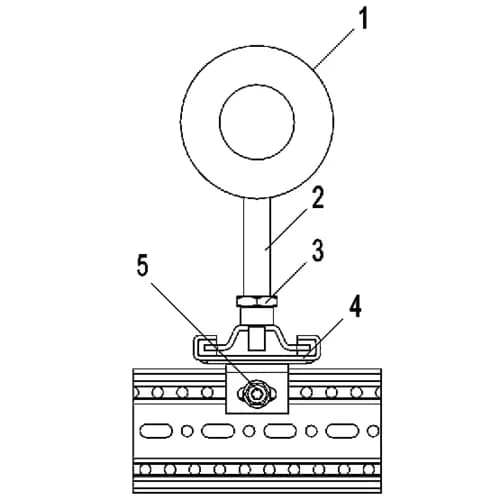

The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.
L(max, horizontal) = not recommended
