Type MA
Assembly Set MS 5P MA S HCP
Group: A640

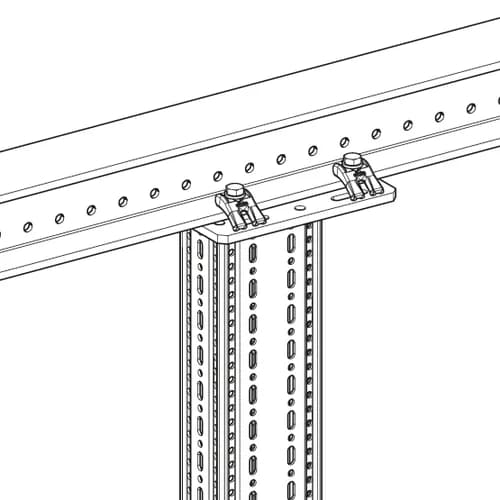

Used to connect a Beam Bracket TKO, Angled Beam Bracket SKO, End Support WBD or Pivot Joint GE F
Suitable for mounting on a beam section
Overview of Types
General Information
The Assembly Set MS 5P is used to connect a Beam Bracket TKO, Angled Beam Bracket SKO, End Support WBD or Pivot Joint GE F to a beam section. The Stop Plate assists with professional installation.
Certification
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Load range
Type | -VY,perm. | VY,perm. | -VZ,perm. | VZ,perm. |
MS 5P MA M12 S HCP | 32,90 kN | 32,90 kN | 15,10 kN | 15,10 kN |
MS 5P MA M16 S HCP | 39,10 kN | 39,10 kN | 16,70 kN | 16,70 kN |
The specified F(z) data relate to the worst case with flange thicknesses 30 mnm (M12) or 40 mm (M16) as well as a coefficient of adhesion µ(adhesion) = 0,20.
A possibly operating tensile force F(y) isn't included.
Software
This product is available in the following software.

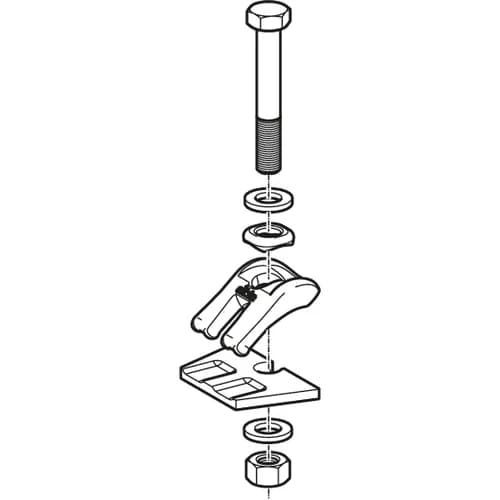

Installation
1. Position stop plate on component to be mounted.
2. Position the Beam Clip with the slit side into the indentations of the stop plate and with the lug on the steel girder.
3. Install support plate and HR trimming and tighten accordingly.
The support plate secures a rectangular assembly of the bolt and prevents its shifting or bending stress. In conjunction with the HR trimming a continuous and predictable preload force is guaranteed. The stop plate ensures a tight fit of the Beam Clip.
Tightening torques:
| Type | Size range [mm] | Tightening torque MA [Nm] / plus revolution |
|---|---|---|
| M12 MA S | 1 - 30 | 60 / 90° |
| M16 MA S | 4 - 40 | 140 / 90° |
