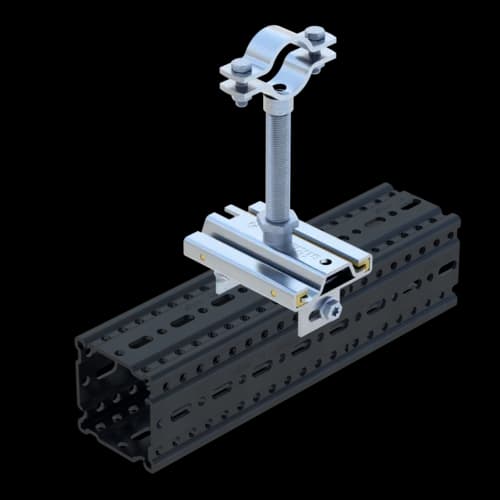

Up to DN 50

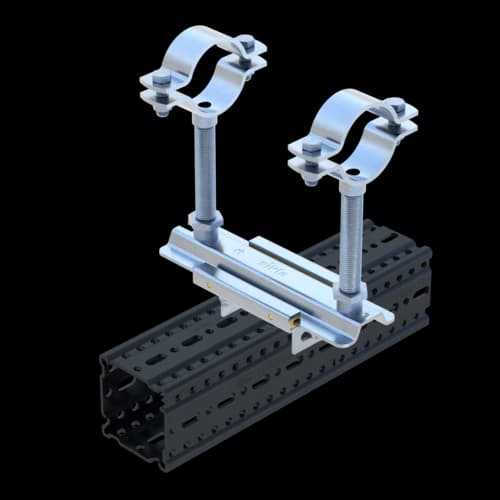

From DN 65
Assembly Group BG17 F100-1/2'' HCP
Group: 1102
Assembly group for use as a guided support with heavy pipe clamp Stabil I-1/2'
Designed for use with Beam Section TP F 100, connected via Self Forming Screw FLS F
Height adjustment via Threaded Tube 1/2', from DN 65 upwards Slide Set GS F 100 1G2 creates two pipe supports
Overview of Types
General Information
An Assembly Group for use as a guided support with the heavy Pipe Clamp Stabil I-1/2'. The Assembly Group is designed for use with the Beam Section TP F 100. It is connected using the Self Forming Screw FLS F, and the height is adjusted via the Threaded Tube 1/2'. From DN 65 upwards, the Slide Set GS F 100 1G2 is used to create two pipe supports.
Certification
Technical specifications
Material base body | steel |
Material connecting element | steel |
Surface | HCP |
Corossion class | C4 |
Software
This product is available in the following software.

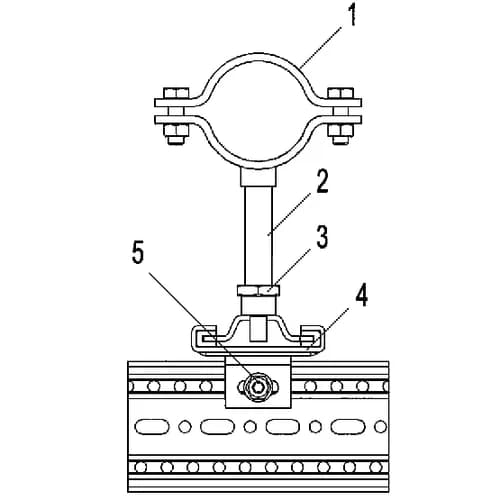

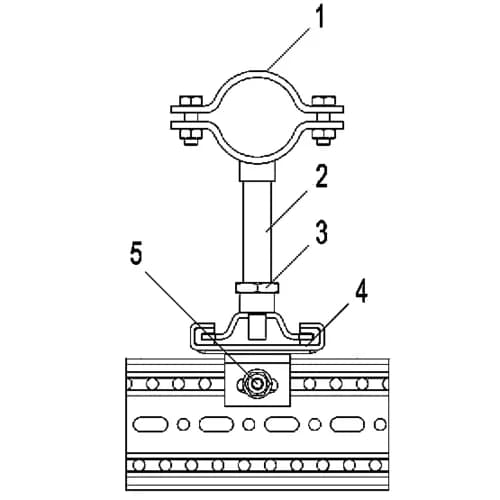

Installation
The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.
L(max, horizontal) = not recommended
