Group: 1102

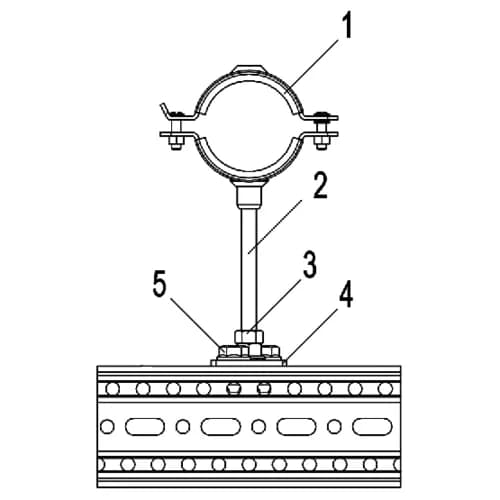

Contains components for a permanent pipe connection with pipe clamp Stabil D-3G
Designed for use with Beam Section TP F 80, connected via Self Forming Screw FLS F
Height adjustment via Threaded Rod M10, sound absorption according to DIN 4109
The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.
L(max, horizontal) = not recommended

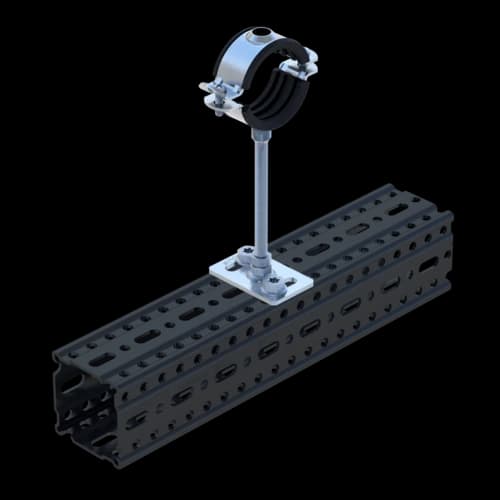

An Assembly Group containing components to make up a permanent pipe connection with the pipe clamp Stabil D-3G. The Assembly Group is designed for use with the Beam Section TP F 80. It is connected using the Self Forming Screw FLS F, and the height is adjusted via the Threaded Rod M10. The pipe clamp with sound absorption lining ensures sound absorption in accordance with DIN 4109.
Certification
Primary element material | steel |
Isolating element material | SBR/EPDM |
Connecting element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Software
This product is available in the following software.
Info | Type | Size min. | Size max. | DN | Weight | Quantity | Part number | |
| BG14 F 80 M10 DN 15 HCP | 19,00 mm | 23,00 mm | DN 15 (1/2") | 0,350 kg/pcs. | 1 pcs. | 110200 | ||
| BG14 F 80 M10 DN 20 HCP | 24,00 mm | 28,00 mm | DN 20 (3/4") | 0,380 kg/pcs. | 1 pcs. | 110201 | ||
| BG14 F 80 M10 DN 25 HCP | 33,00 mm | 37,00 mm | DN 25 (1") | 0,400 kg/pcs. | 1 pcs. | 110202 | ||
| BG14 F 80 M10 DN 32 HCP | 40,00 mm | 45,00 mm | DN 32 (1 1/4") | 0,420 kg/pcs. | 1 pcs. | 110203 | ||
| BG14 F 80 M10 DN 40 HCP | 47,00 mm | 52,00 mm | DN 40 (1 1/2") | 0,440 kg/pcs. | 1 pcs. | 110204 | ||
| BG14 F 80 M10 DN 50 HCP | 60,00 mm | 65,00 mm | DN 50 (2") | 0,460 kg/pcs. | 1 pcs. | 110205 | ||
| BG14 F 80 M10 DN 65 HCP | 73,00 mm | 78,00 mm | DN 65 (2 1/2") | 0,560 kg/pcs. | 1 pcs. | 110206 | ||
| BG14 F 80 M10 DN 80 HCP | 88,00 mm | 93,00 mm | DN 80 (3") | 0,610 kg/pcs. | 1 pcs. | 110207 | ||
| BG14 F 80 M10 DN 100 HCP | 108,00 mm | 115,00 mm | DN 100 (4") | 0,670 kg/pcs. | 1 pcs. | 110208 | ||
