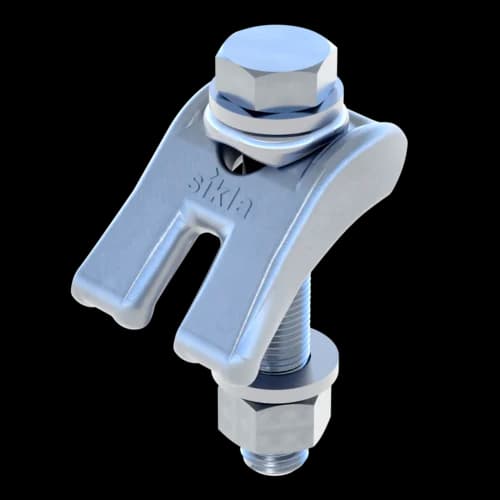

Assembly Set MS 5P A4
Group: 1778
Element for connecting Beam Bracket TKO, Angled Beam Bracket SKO, End Support WBD or Pivot Joint GE F to a beam section
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
Group: 1778
Element for connecting Beam Bracket TKO, Angled Beam Bracket SKO, End Support WBD or Pivot Joint GE F to a beam section
1. Position Beam Clip with the split end on beam section.
2. Install support plate and ss trimming and tighten accordingly.
The support plate secures a rectangular assembly of the bolt and prevents its shifting or bending stress. In conjunction with the ss trimming a continuous and predictable preload force is guaranteed.
Tightening torques:
| Type | Size range [mm] | Tightening torque MA [Nm] / plus revolution |
|---|---|---|
| M12 S | 1 - 30 | 60 / 90° |
| M16 S | 4 - 40 | 140 / 90° |
Element for connecting Beam Bracket TKO, Angled Beam Bracket SKO, End Support WBD or Pivot Joint GE F to a beam section.
Primary element material | Stainless Steel A4 |
Corrosion protection class | CRC II – III (C4 – C5 acc. to DIN EN ISO 12944-2) |
Type | -VY,perm. | VY,perm. | -VZ,perm. | VZ,perm. |
MS 5P M12 S2 A4 | 17,60 kN | 17,60 kN | 8,10 kN | 8,10 kN |
MS 5P M12 S A4 | 17,60 kN | 17,60 kN | 8,10 kN | 8,10 kN |
MS 5P M16 S2 A4 | 19,80 kN | 19,80 kN | 8,40 kN | 8,40 kN |
MS 5P M16 S A4 | 19,80 kN | 19,80 kN | 8,40 kN | 8,40 kN |
The specified F(z) data relate to the worst case with flange thicknesses 30 mnm (M12) or 40 mm (M16) as well as a coefficient of adhesion µ(adhesion) = 0,20.
A possibly operating tensile force F(y) isn't included.
Software
This product is available in the following software.
Info | Type | Weight | Quantity | Part number | |
| MS 5P M12 S2 A4 | 0,61 kg/pcs. | 10 pcs. | 803711 | ||
| MS 5P M12 S A4 | 1,18 kg/pcs. | 10 pcs. | 803709 | ||
| MS 5P M16 S2 A4 | 1,15 kg/Set | 10 Set | 803801 | ||
| MS 5P M16 S A4 | 2,29 kg/pcs. | 10 pcs. | 803710 | ||
