Group: 1102

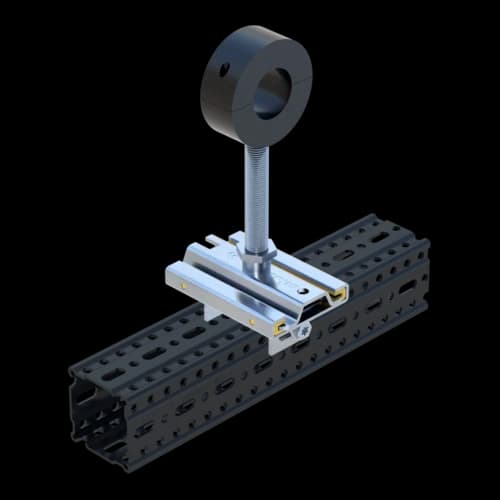

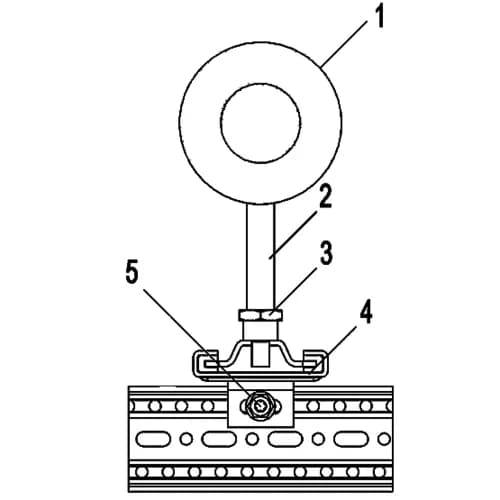

Assembly group for use as a guided support with insulated Chilled Water Clamp RB for chiller plants and cool water systems
Designed for use with Beam Section TP F 80, connected via Self Forming Screw FLS F
Height adjustment via Threaded Tube 1/2'
The assembly of the individual components to form an Assembly Group is carried out during the course of pipe installation on the construction site.
L(max, horizontal) = not recommended
An Assembly Group for use as a guided support with the insulated Chilled Water Clamp RB for chiller plants and cool water systems. The Assembly Group is designed for use with the Beam Section TP F 80. It is connected using Self Forming Screw FLS F, and the height is adjusted via the Threaded Tube 1/2'.
Certification
Max. temperature | 105 °C |
Min. temperature | -50 °C |
Thermal conductivity λ {0°C} | λ 0,045 W/Mk |
Fire Performance | Class B2 according to DIN 4102 |
Bulk density | 250,00 kg/m³ |
Water vapour diffusion resistance factor | µ 1200 |
Primary element material | steel |
Isolating element material | PUR |
Connecting element material | steel |
Surface finish | HCP |
Corrosion protection class | C4 |
Software
This product is available in the following software.
Info | Type | DN | Weight | Quantity | Part number | |
| BG45 F 80-1/2'' DN 15 HCP | DN 15 (1/2") | 1,8 kg/pcs. | 1 pcs. | 110299 | ||
| BG45 F 80-1/2'' DN 20 HCP | DN 20 (3/4") | 1,8 kg/pcs. | 1 pcs. | 110300 | ||
| BG45 F 80-1/2'' DN 25 HCP | DN 25 (1") | 1,81 kg/pcs. | 1 pcs. | 110301 | ||
| BG45 F 80-1/2'' DN 32 HCP | DN 32 (1 1/4") | 1,82 kg/pcs. | 1 pcs. | 110302 | ||
| BG45 F 80-1/2'' DN 40 HCP | DN 40 (1 1/2") | 0,5 kg/pcs. | 1 pcs. | 110303 | ||
| BG45 F 80-1/2'' DN 50 HCP | DN 50 (2") | 1,92 kg/pcs. | 1 pcs. | 110304 | ||
| BG45 F 80-1/2'' DN 65 HCP | DN 65 (2 1/2") | 2,04 kg/pcs. | 1 pcs. | 110305 | ||
| BG45 F 80-1/2'' DN 80 HCP | DN 80 (3") | 2,08 kg/pcs. | 1 pcs. | 110306 | ||
| BG45 F 80-1/2'' DN 100 HCP | DN 100 (4") | 2,65 kg/pcs. | 1 pcs. | 110307 | ||
