Adapter Plate AP HCP
Group: A630
Enables the connection of standard endplates of Beam Brackets TKO F80 or F100, TKO 100 or 120
Suitable for primary steel with flange width greater than 120 mm
Overview of Types
General Information
Interface element to enable the connection of standard endplates of Beam Brackets TKO F80 or F100, TKO 100 or 120 to primary steel with flange width >120 mm.
Certification
Technical specifications
Material base body | steel |
Material connecting element | steel |
Surface | HCP |
Corossion class | C4 |
Also available with DUALSHIELD for high corrosion protection within C5H environments.
Software
This product is available in the following software.
Installation

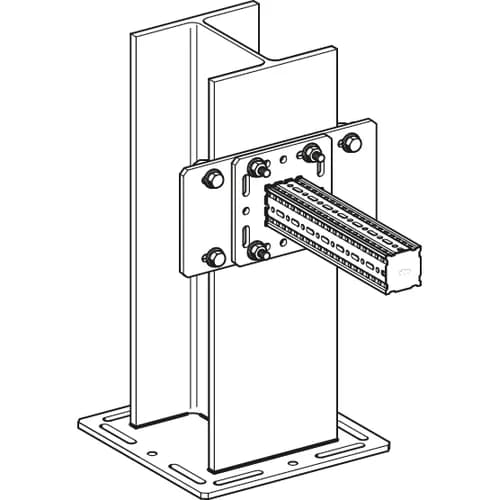

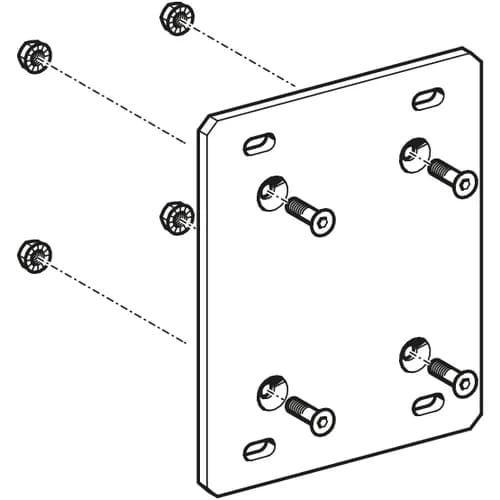

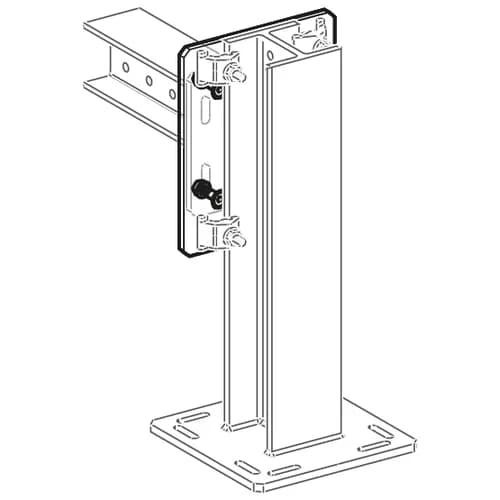

Connect the Adapter Plate AP to the Beam Bracket TKO’s end plate by using the accessories above. Then continue with either heavy-duty anchors or Assembly Set 5P/Beam Clips as required by the building structure.
| Type | Perforation for | Connection to flange width [mm] |
|---|---|---|

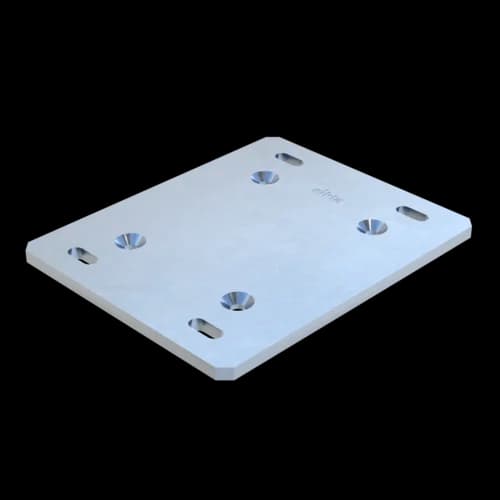

| AP 121/160 | M12 | 121 - 160 |

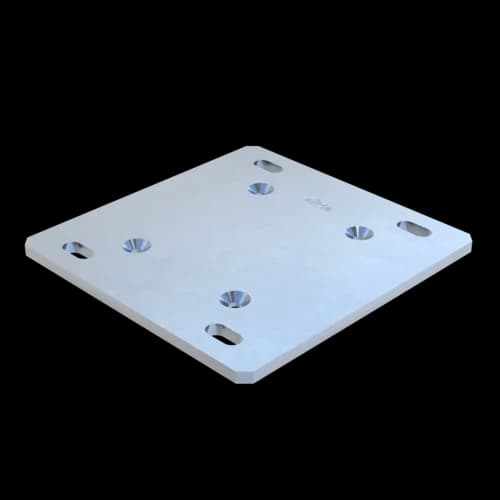

| AP 161/200 | M16 | 161 - 200 |

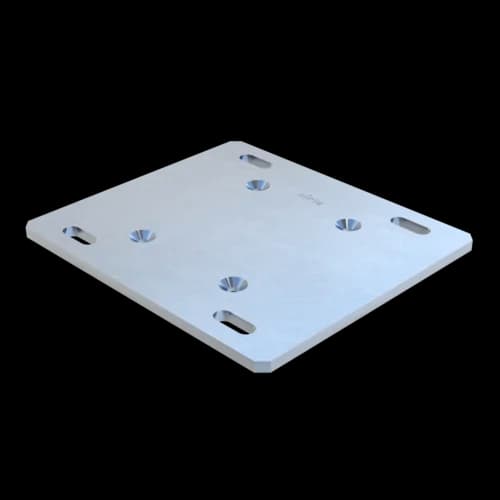

| AP 201/240 | M16 | 201 - 240 |

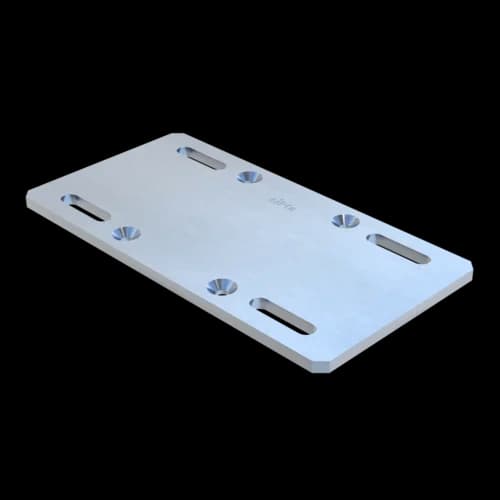

| AP 241/310 | M16 | 241 - 310 |
