Assembly Group BG51 F 80 HCP
Group: 1102
Assembly group for supporting pipes without complex requirements and without heat insulation
Allows free sliding of the pipe in all dimensions on Beam Section TP F 80
Overview of Types
General Information

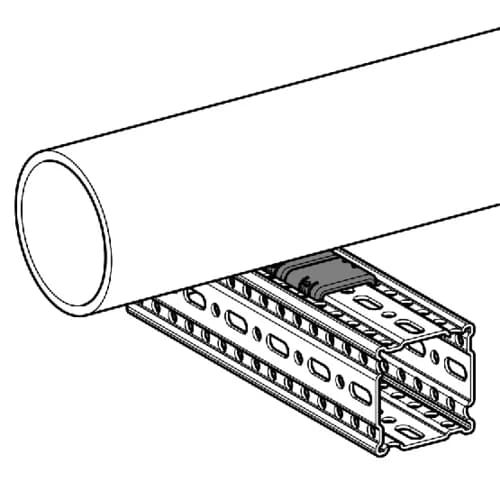

An Assembly Group for the supporting of pipes without complex requirements and without heat insulation. This allows free sliding of the pipe in all dimensions on the Beam Section TP F 80.
Certification
Technical specifications
Max. temperature | 130 °C |
Min. temperature | -20 °C |
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Software
This product is available in the following software.
Installation
According to the anticipated sideways movement of the supported pipes, 1 to 3 U-UB pads should be clicked into the beam section.
|
Number U-UB pad |
Width B [mm] |
Height t [mm] |
|---|---|---|
| 1 | 40 | 5 |
| 2 | 80 | 5 |
| 3 | 120 | 5 |
