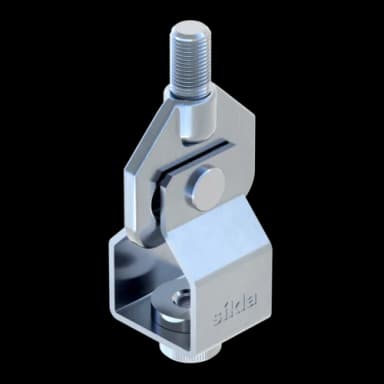

Height-adjustable suspension slide element for all mechanical services. Can be fixed as a single mounting element directly to the ceiling or, in case of parallel pipe runs, to Sikla Channels. The slide roller located in the suspended section provides for smooth, jerk-free and silent sliding.

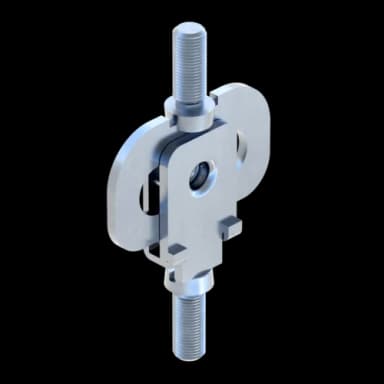

Suspension slide element which can be fixed as a single mounting element directly to the ceiling or, in case of parallel pipe runs, to Sikla Channels. Pendular function allows for slight lateral movements. The slide roller located in the suspending section provides for smooth, jerk-free and silent sliding. Type LC-A is suitable for insulation thicknesses up to 25 mm.

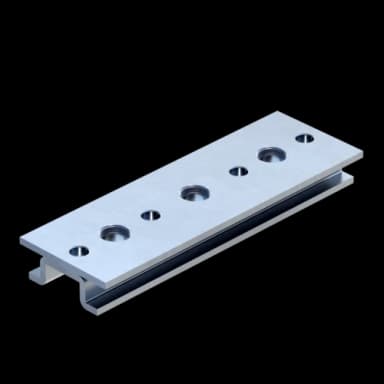

Slide element for use in Sikla Channels MS 41. For single and, using a Tandem Connector, double mounting options. The sliding distance is determined by the length of the rail. Holding Brackets are to be used for securing the slide element. Alternatively, the Sikla Channel Holder SH may be used. Any option in combination with Sikla Pipe Clamps Ratio S and Stabil D-3G may be realised. Various connection options with pipe clamps in the range between M12 and R1'. For these connection options, the corresponding Mounting Plate could be screwed directly with the slide element by means of bolts M10 x 20. Suitable for ceiling and floor mounting solutions and as a guide for rising pipes.

Slide element for use in Sikla Channels MS 41. For single and, using a Tandem Connector, double mounting options. The sliding distance is determined by the length of the rail. Holding Brackets are to be used for securing the slide element. Alternatively, the Sikla Channel Holder SH may be used. Any option in combination with Sikla Pipe Clamps Ratio S and Stabil D-3G may be realised. Various connection options with pipe clamps in the range between M12 and R1'. For these connection options, the corresponding Mounting Plate could be screwed directly with the slide element by means of bolts M10 x 20. Suitable for ceiling and floor mounting solutions and as a guide for rising pipes.

Slide Set for mounting of small pipe lines with possible elongation of length. Space-saving and thus also to be used for smaller centre distances, especially in combination with pipe clamps Ratio S and LS. The stop at the skid avoids the pipe line from sliding and at the same time is a comfortable guide for rising pipes. Guiding corrugations guarantee the exact 90° arrangement and avoid the screwing up of the slide set.

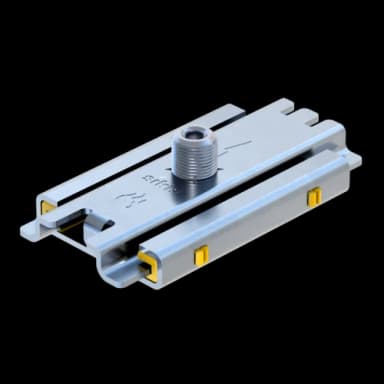

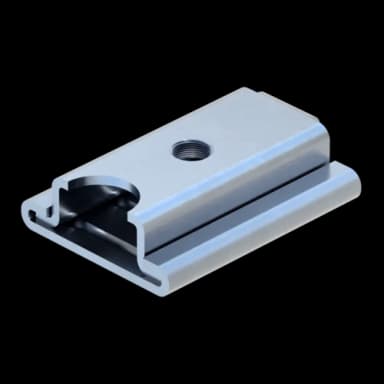

Slide Set for single and double mounting of mechanical equipment. To be used preferably in combination with Sikla Pipe Clamps Ratio S and Stabil D-3G. Various connection options with these pipe clamps ranging between M10 and R1'. For adapters for these connection options (see Adapter AD f/f). Sound absorption by means of glass fibre reinforced PA slide rails.

Slide Set for single and double mounting of mechanical equipment. To be used preferably in combination with Sikla Pipe Clamps Stabil D-2G ss. Various connection options with these pipe clamps ranging between M10 and R1' using adapters (see Adapters AD f/f ss) Sound absorption by means of slide rails of glass fibre reinforced PA.

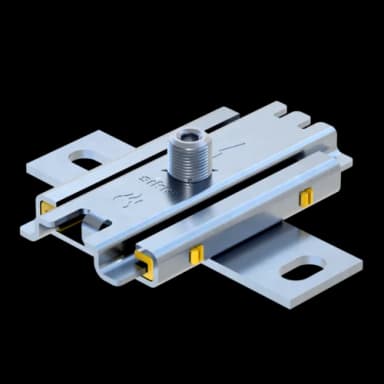

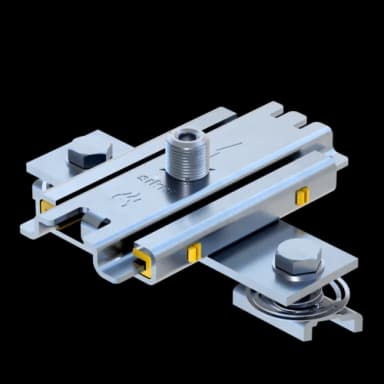

Slide Set for single and double mounting of mechanical equipment, to be used on Sikla Channels, brick or concrete walls and on bearers. To be used preferably in combination with Sikla Pipe Clamps Ratio S and Stabil D-3G. Various connection options with these pipe clamps ranging between M10 and R1'. For adapters for these connection options (see Adapter AD f/f). Sound absorption by means glass fibre reinforced PA slide rails.

Slide Set for single and double mounting of mechanical equipment, to be used on Sikla Channels, brick or concrete walls and on bearers. To be used preferably in combination with Sikla Pipe Clamps Stabil D-2G ss. Various connection options with these pipe clamps ranging between M10 and R 1' using adapters (see Adapters AD f/f ss). Sound absorption by means of glass fibre reinforced PA.

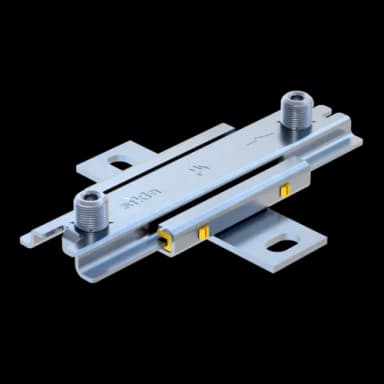

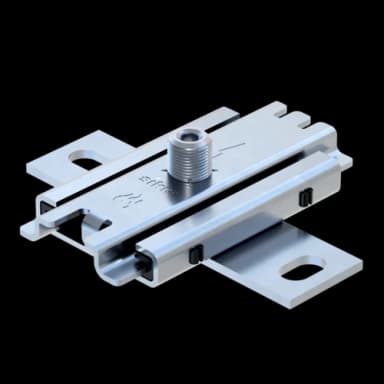

Slide Set for single and double mounting of mechanical equipment, to be used on Sikla Channels, brick or concrete walls and on bearers. To be used preferably in combination with Sikla Pipe Clamps Ratio S and Stabil D-3G. Various connection options with these pipe clamps ranging between M10 and R1'. For adapters for these connection options (see Adapter AD f/f). Sound absorption by means glass fibre reinforced PA slide rails. When using the version fett ULTRAglide /fett the resultant shear force is halved. By this the realisation of optimized supporting structures is possible.

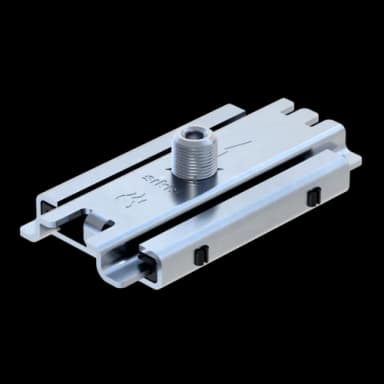

Slide Set for single and double mounting of mechanical equipment. To be used preferably in combination with Sikla Pipe Clamps Ratio S and Stabil D-3G. Various connection options with these pipe clamps ranging between M10 and R1'. For adapters for these connection options (see Adapter AD f/f). Sound absorption by means of glass fibre reinforced PA slide rails. When using the version ULTRAglide the resultant shear force is halved. By this the realisation of optimized supporting structures is possible.

Slide Set for single and double mounting of mechanical equipment, to be used on Sikla Channels, brick or concrete walls and on bearers. To be used preferably in combination with Sikla Pipe Clamps Ratio S and Stabil D-3G. Various connection options with these pipe clamps ranging between M10 and R1'. For adapters for these connection options (see Adapter AD f/f). Sound absorption by means glass fibre reinforced PA slide rails.

Slide Set for single and double mounting of mechanical equipment to be used on Sikla Channels, brick or concrete walls and on bearers. To be used preferably in combination with Sikla Pipe Clamps Ratio S and Stabil D-3G. Various connection options with these pipe clamps ranging between M10 and R1'. For adapters for these connection options, see Adapter AD f/f in chapter 'Pipe Clamps and Accessories'. Slide rails in polyamide, glass fibre reinforced.

Heavy-duty Slide Set for plant construction to be used on Sikla Channels, brick or concrete walls and on bearers. To be used preferably in combination with pipe clamps Stabil D-3G, Ratio S and Chilled Water Clamp SKS. Various connection options of the pipe clamp depending on the respective load: M12, M16. In combination with 1/2'-adapters (see Adapter f/f) there are even further possibilities. Especially suitable for ceiling and floor mounting solutions and as a guide for rising pipes. Sound absorption due to slide rails in PPS glass fibre reinforced.

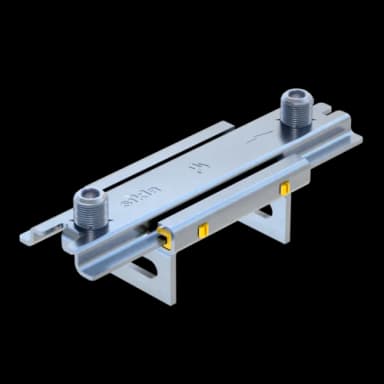

Heavy-duty Slide Set for single and double-connection to siFramo TP F 80 beam sections. 1/2' thread connection allows direct connection to pipe clamp Stabil I -1/2' by means of threaded tube without further adaption parts.

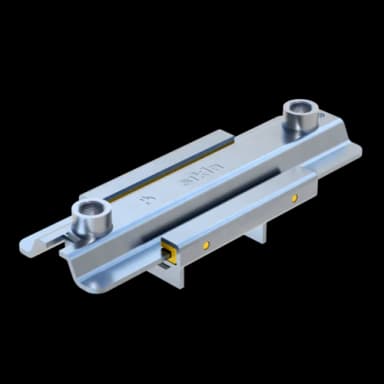

Slide Set for single or twin-clamp connection designed to clutch the Beam Section F80 via 2 x Self Forming Screws FLS.

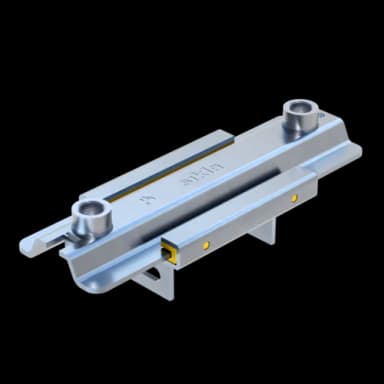

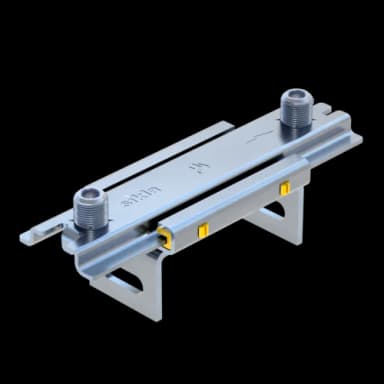

Heavy-duty Slide Set for single and twin-clamp connection to siFramo TP F 100 beam sections. 1/2' thread connection allows direct connection to pipe clamp Stabil I -1/2' by means of threaded tube without further adaption parts.

Slide Set for twin-clamp connection designed to clutch the Beam Section F100 fixed by 2 x Self Forming Screws FLS.

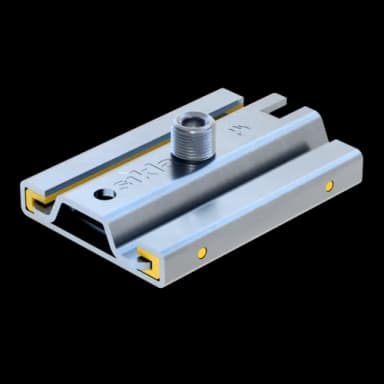

Heavy-duty Slide Set for plant construction. To be used preferably in combination with Sikla Pipe Clamp Stabil D-3G and Chilled Water Clamp SKS Top-2C. Various connection options of the pipe clamps depending on the respective load: M12, M16 or with 1/2' adapters using the external thread (see Adapter AD f/f). Sound absorption by means of glass fibre reinforced polyamide slide rails. Especially suitable for ceiling and floor mounting solutions and as a guide for rising pipes. For wall mounting, we recommend the use of the Slide Set H3G on Sikla Support Bracket.

Heavy-duty Slide Set for plant construction. To be used preferably in combination with Sikla Pipe Clamps Stabil D-3G ss. Various connection options of the pipe clamps depending on the respecitve load: M12, M16 or with 1/2' adapters using the external thread (see Adapter AD f/f ss). Especially suitable for ceiling and floor mounting solutions and as a guide for rising pipes. For wall mounting, we recommend the use of the Slide Set on Sikla Support Brackets. When mounting the Slide Set directly to a wall, the reduced permissible loads of the anchors are to be taken into consideration. Sound absorption by means of slide rails with glass fibre reinforced polyamide.

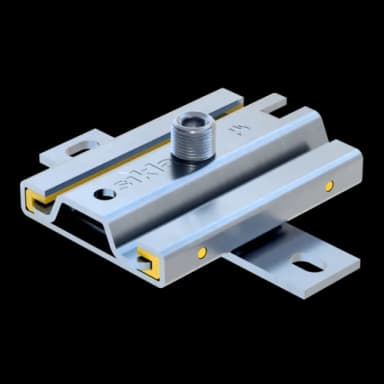

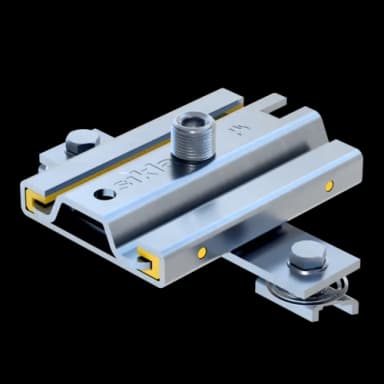

Heavy-duty Slide Set for plant construction, to be used on Sikla Channels, brick or concrete walls and on bearers. This Slide Set version is especially suitable for bolted mounting to the building structure. To be used preferably in combination with Sikla Pipe Clamp Stabil D-3G and Chilled Water Clamp SKS Top-2C. Various connection options of the pipe clamps depending on the respective load: M12, M16 or with 1/2' adapters using the external thread (see Adapter AD f/f). Sound absorption by means of glass fibre reinforced polyamide slide rails. Especially suitable for ceiling and floor mounting solutions and as a guide for rising pipes.

Heavy-duty Slide Set for plant construction, to be used on Sikla Channels, brick or concrete walls and on bearers. This Slide Set is especially suitable for bolted mounting to the building structure. To be used preferably in combination with Sikla Pipe Clamps Stabil D-3G ss. Various connection options of the pipe clamps depending on the respective load: M12, M16 or with 1/2' adapters ss using the external thread (see Adapter AD f/f ss). Sound absorption by means of slide rails in glass fibre reinforced polyamide. Especially suitable for ceiling and floor mounting solutions and as a guide for rising pipes.

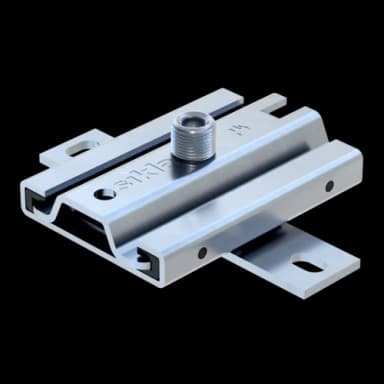

Heavy-duty Slide Set for plant construction, to be used on Sikla Channels, brick or concrete walls and on bearers. This Slide Set version is especially suitable for bolted mounting to the building structure. To be used preferably in combination with Sikla Pipe Clamp Stabil D-3G and Chilled Water Clamp SKS Top-2C. Various connection options of the pipe clamps depending on the respective load: M12, M16 or with 1/2' adapters using the external thread (see Adapter AD f/f). Sound absorption by means of glass fibre reinforced polyamide slide rails. When using the version ULTRAglide the resultant shear force is halved. By this the realisation of optimized supporting structures is possible. Especially suitable for ceiling and floor mounting solutions and as a guide for rising pipes.
