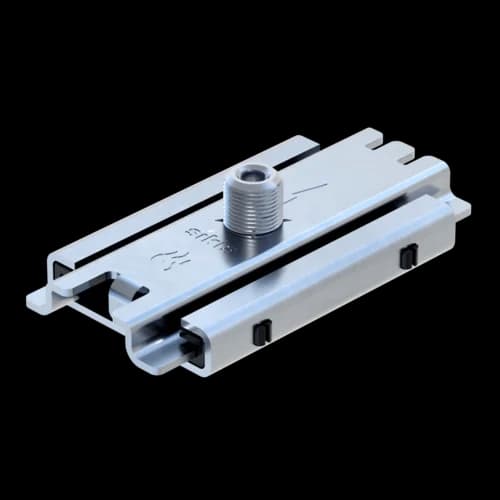

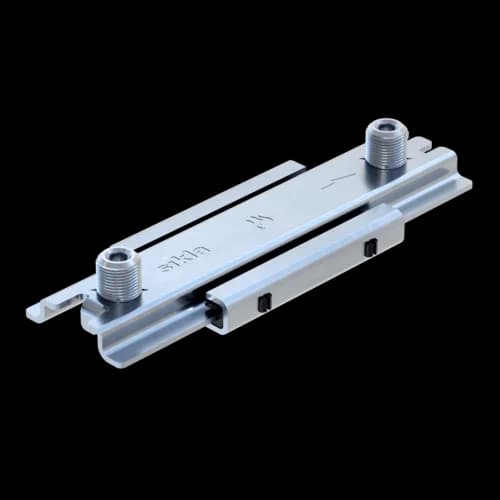

Slide Set GS 2G ULTRAGLIDE
Group: 1336
Slide set for single and double mounting of mechanical equipment
Preferably used with Sikla Pipe Clamps Ratio S and Stabil D-3G, offering various connection options from M10 to R1'
Sound absorption by glass fibre reinforced PA slide rails; ULTRAglide version halves shear force for optimized supporting structures
Overview of Types
General Information

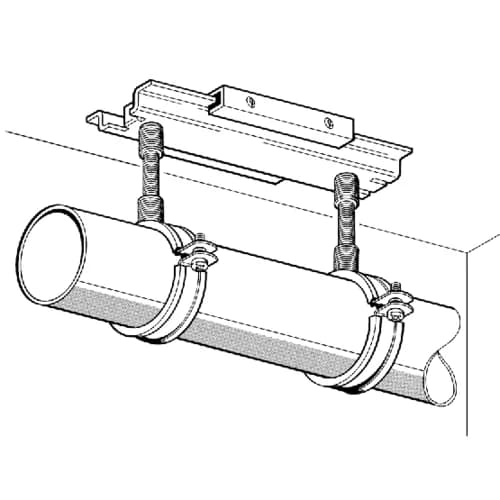

Slide Set for single and double mounting of mechanical equipment. To be used preferably in combination with Sikla Pipe Clamps Ratio S and Stabil D-3G. Various connection options with these pipe clamps ranging between M10 and R1'. For adapters for these connection options (see Adapter AD f/f). Sound absorption by means of glass fibre reinforced PA slide rails. When using the version ULTRAglide the resultant shear force is halved. By this the realisation of optimized supporting structures is possible.
Certification
Technical specifications
Permissible long-term temperature | 130 °C |
Sliding Friction μ | 0,07 |
Static Friction μ0 | 0,07 |
Material base body | steel |
Material sliding element | PA GF Nano-coated |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Load range
Type | -VZ,perm. | VZ,perm. |
GS ULTRAGLIDE 2G | 0,60 kN | 1,20 kN |
GS ULTRAGLIDE 2G2 | 0,60 kN | 1,20 kN |
The load capacity of the connecting parts used is to be considered. This applies particularly under stress of fire.
Fire resistance
Type | FRP 30 | FRP 60 | FRP 90 | FRP 120 |
GS ULTRAGLIDE 2G | 0,6 kN | 0,43 kN | 0,28 kN | 0,2 kN |
GS ULTRAGLIDE 2G2 | 0,6 kN | 0,43 kN | 0,28 kN | 0,2 kN |
Software
This product is available in the following software.
Documents
- Installation - Slide Set GS 2G
PDF (0.09MB)
