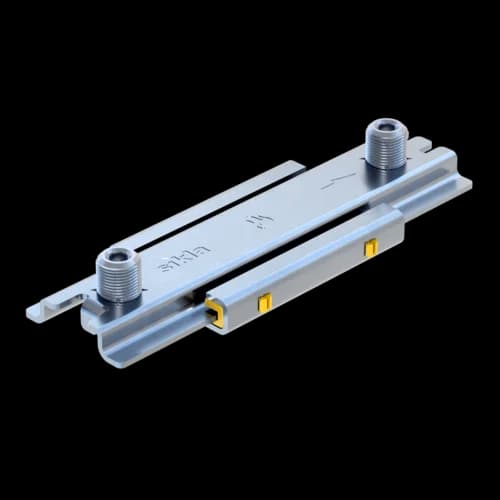

2G2
Slide Set GS 2G A4
Group: 1736
Slide set for single and double mounting of mechanical equipment
Preferably used with Sikla Pipe Clamps Stabil D-2G ss, offering various connection options from M10 to R1' using adapters
Sound absorption provided by glass fibre reinforced PA slide rails
Overview of Types
General Information
Slide Set for single and double mounting of mechanical equipment. To be used preferably in combination with Sikla Pipe Clamps Stabil D-2G ss. Various connection options with these pipe clamps ranging between M10 and R1' using adapters (see Adapters AD f/f ss) Sound absorption by means of slide rails of glass fibre reinforced PA.
Certification
Technical specifications
Permissible long-term temperature | 130 °C |
Sliding Friction μ | 0,14 |
Static Friction μ0 | 0,18 |
Material base body | Stainless Steel A4 |
Material sliding element | PA |
Corossion class | CRC II – III (C4 – C5 acc. to DIN EN ISO 12944-2) |
Load range
Type | -VZ,perm. | VZ,perm. |
GS 2G A4 | 0,60 kN | 1,20 kN |
GS 2G2 A4 | 0,60 kN | 1,20 kN |
Software
This product is available in the following software.
Installation
Max. sliding distance Type 2G: 85 mm
Max. sliding distance Type 2G2: 140 mm
Documents
- Installation - Slide Set GS 2G
PDF (0.09MB)
