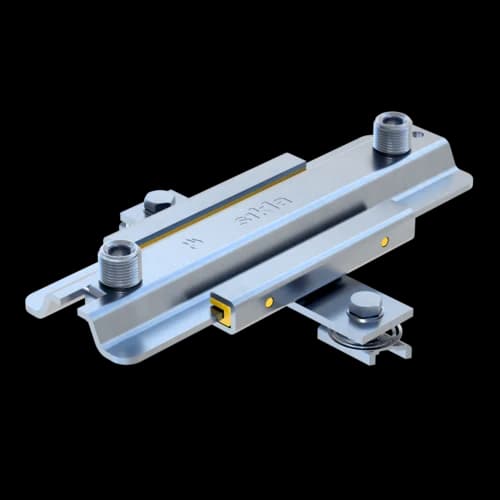

Slide Set GS CC H3G PL

Group: 1336

Heavy-duty slide set for plant construction, suitable for Sikla Channels, brick or concrete walls and bearers

Preferably used with pipe clamps Stabil D-3G, Ratio S and Chilled Water Clamp SKS; various connection options including M12, M16 and 1/2' adapters

Especially suitable for ceiling and floor mounting and as a guide for rising pipes; sound absorption by PPS glass fibre reinforced slide rails

Select a Type

Overview of Types
General Information
Installation

Overview of Types

General Information

Heavy-duty Slide Set for plant construction to be used on Sikla Channels, brick or concrete walls and on bearers. To be used preferably in combination with pipe clamps Stabil D-3G, Ratio S and Chilled Water Clamp SKS. Various connection options of the pipe clamp depending on the respective load: M12, M16. In combination with 1/2'-adapters (see Adapter f/f) there are even further possibilities. Especially suitable for ceiling and floor mounting solutions and as a guide for rising pipes. Sound absorption due to slide rails in PPS glass fibre reinforced.

Certification

Technical specifications

Permissible long-term temperature

130 °C

Sliding Friction μ	0,14
Static Friction μ₀	0,18

Material base body	steel
Material sliding element	PA
Material connecting element	steel
Surface	electro galvanized (Fe//Zn)
Corossion class	C2

Load range

Type	-V_Z,perm.	V_Z,perm.
GS CC H3G - PL	5,00 kN	9,00 kN
GS CC H3G2 - PL	5,00 kN	9,00 kN

The load capacity of the connecting parts used is to be considered. This applies particularly under stress of fire.

Fire resistance

Type	FRP 30	FRP 60	FRP 90	FRP 120
GS CC H3G - PL	1 kN	0,54 kN	0,36 kN	0,26 kN
GS CC H3G2 - PL	1 kN	0,54 kN	0,36 kN	0,26 kN

Software

This product is available in the following software.

Installation

Locks automatically in the channel by pushing down the the bolt head, tighten - that's it!
For pipes of NB 100 or larger having to be spaced at a distance from the Slide Set, or under conditions of reversed bending stress, the 3G triple thread nut is to be secured by screwing on a 1/2" Locking Nut.

Lever L(max): 250 mm
Max. sliding distance Type CC - H3G-PL: 100 mm
Max. sliding distance Type CC - H3G2-PL: 135 mm
