H3G-PL

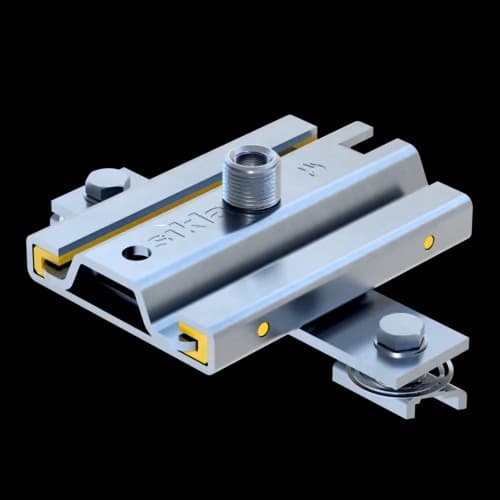

Slide Set GS CC H3G - PL
Group: 1336
Part number 191747
Heavy-duty slide set for plant construction, suitable for Sikla Channels, brick or concrete walls and bearers
Preferably used with pipe clamps Stabil D-3G, Ratio S and Chilled Water Clamp SKS; various connection options including M12, M16 and 1/2' adapters
Especially suitable for ceiling and floor mounting and as a guide for rising pipes; sound absorption by PPS glass fibre reinforced slide rails
Technical Data
b | 13 mm |
B2 | 150 mm |
BP | 40 mm |
dP | 13 mm |
HG | 54,5 mm |
lz | 10 mm |
LP | 188 mm |
LP1 | 160 mm |
Ma | 1/2" |
Mi1 | M12 |
Mi2 | M16 |
tP | 5 mm |
Slide Set incl. pre-assembled CC-component.
Load range
-VZ,perm. | 5,00 kN |
VZ,perm. | 9,00 kN |
FRP 30 | 1 kN |
FRP 60 | 0,54 kN |
FRP 90 | 0,36 kN |
FRP 120 | 0,26 kN |
The load capacity of the connecting parts used is to be considered. This applies particularly under stress of fire.
Technical specifications
Permissible long-term temperature | 130 °C |
Sliding Friction μ | 0,14 |
Static Friction μ0 | 0,18 |
Material base body | steel |
Material sliding element | PA |
Material connecting element | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Certification
Installation
Locks automatically in the channel by pushing down the the bolt head, tighten - that's it!
For pipes of NB 100 or larger having to be spaced at a distance from the Slide Set, or under conditions of reversed bending stress, the 3G triple thread nut is to be secured by screwing on a 1/2" Locking Nut.
Lever L(max): 250 mm
Max. sliding distance Type CC - H3G-PL: 100 mm
Max. sliding distance Type CC - H3G2-PL: 135 mm
