Injection System VMZ - Resin
Resin for Resin Anchor Rod VMZ-A. Excellent load capacity in broken and unbroken concrete. The resin mixture hardens resulting in strong bond with the concrete and a perfectly formed expansion sleeve around the conical rod. The inner bond between the conical rod and the resin mixture is broken by applying a torque moment after the hardening process. The VMZ is approved for use under seismic action according to the performance category C1 and C2 (M10 - M16).
Scope of delivery

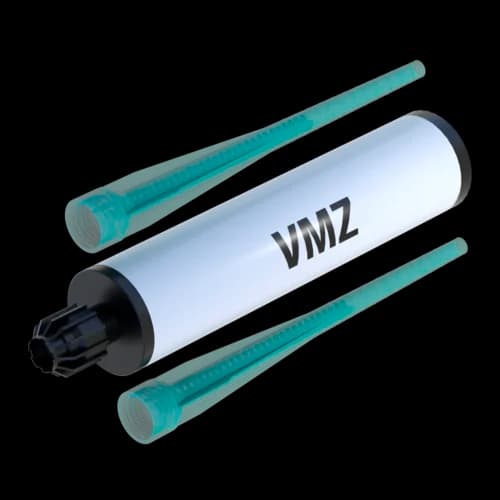

Per cartridge two Mixing Nozzle ANT VM-X are attached.
Resin and hardener are separated in the cartridge.
A dispensing tool is used to push both components through a mixing nozzle. In the nozzle the resin and hardener are mixed and filled into the the cleaned drill hole.
After a longer break in work, exchange of the mixing nozzle allows further use of the resin.
Reach of resin:
| Type|| Number of drill holes |
|VMZ-A M8 ...|| 58|
|VMZ-A M10 ...|| 39|
|VMZ-A M12 ...|| 27|
|VMZ-A M16 ...||16|
Detailed technical information could be seen in the data sheets of Resin Anchor Rod VMZ, as well as in the Approval ETA-10/0260.
| Material:||Vinylester basis, styrol-free|
Approvals / Conformity
Sikla Approval ETA-10/0260
