Pipe Clamps and Accessories

Stabil D-3G w/ Lining

Application

For soundproof installation of pipes required for all M&E services in industrial, residential and public buildings.

Scope of delivery

Sizes 14 to 115 mm are equipped with welded nuts for the clamping bolts. On the joint side, the clamping bolt is pre-assembled; the clamping bolt on the opposite side is mounted into the bore hole and retained by a plastic washer, thus preventing any accidental unscrewing.

For sizes 124 and larger the clamping bolts and the required nuts are supplied in loose form.

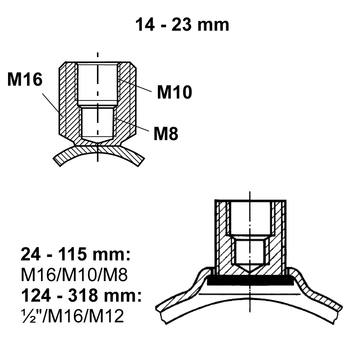

With welded 3G triple thread nut; galvanised; with sound absorption lining. For further adapter-based connection options via the external thread of the 3G triple thread nut, see product "Adapter AD f/f" (this chapter).

Technical Data

Size [mm]
Working load (tension)
Tightening torque
[Nm]
14 - 23 1,8 kN 2
24 - 65 2,0 kN 2
67 - 115 2,0 kN 3
124 - 162 2,9 kN 5
165 - 318 8,0 kN 10

The recommended load is calculated using specific statistical methods relating to break load and is designed to restrict deflection to 1.5 mm or 2 % of the maximum applicable clamping diameter.

Perm. load FZperm,fi in case of fire

Size range
[mm]
FWD 30
[N]
FWD 60
[N]
FWD 90
[N]
FWD 120
[N]
Deformation
δmax [mm]
Thread

14 - 23 380 200 140 - 49 M10
24 - 65 500 250 170 120 44 M10
67 - 115 1000 650 500 400 96 M10
124 - 162 2200 1200 850 600 96 M12
165 - 305 2400 1400 1000 850 104 M12

Material:
Metal components:
Steel, electro-galvanised
Sound absorption lining:
SBR/EPDM sticked in (black) - (see chapter "Sound Absorption Products")

Approvals / Compliance




This product has been awared the RAL quality mark "pipe supports" and "fire-tested pipe supports" and is subject to continuous external monitoring according to RAL GZ-655.

* = no RAL quality mark
For the size ranges of 67 - 72 up to 108 - 115 two connection variants are temporarily available.

Size range
[mm]
NBMaterial
W x th
[mm]
Thread
connection
B
[mm]
W
[kg]
Quantity
[pack]
Part
number
14 - 183/8"25 x 2.0M16/M10/M8 630.0850 107680
19 - 231/2"25 x 2.0M16/M10/M8 690.0950 107699
24 - 283/4"30 x 2.5M16/M10/M8 740.1250 107255
29 - 331"30 x 2.5M16/M10/M8 810.1450 107264
33 - 3730 x 2.5M16/M10/M8 850.1550 107273
40 - 451 1/4"30 x 2.5M16/M10/M8 940.1750 107282
47 - 521 1/2"30 x 2.5M16/M10/M81040.1950 107291
53 - 5830 x 2.5M16/M10/M81100.1950 107307
60 - 652"30 x 2.5M16/M10/M81170.2150 107316
67 - 72 M30 x 3.0M16/M10/M81370.3025 115773
73 - 78 M2 1/2"30 x 3.0M16/M10/M81430.3125 115774
79 - 85 M30 x 3.0M16/M10/M81490.3325 115775
88 - 93 M3"30 x 3.0M16/M10/M81570.3625 115776
100 - 106 M30 x 3.0M16/M10/M81710.3925 115778
108 - 115 M4"30 x 3.0M16/M10/M81800.4225 115780
124 - 12940 x 4.01/2"/M16/M122100.8910 107389
131 - 13740 x 4.01/2"/M16/M122180.9310 107398
138 - 1445"40 x 4.01/2"/M16/M122250.9610 107404
148 - 15440 x 4.01/2"/M16/M122351.0010 107413
156 - 16240 x 4.01/2"/M16/M122431.0510 107422
165 - 1716"40 x 4.01/2"/M16/M122551.1810 107431
177 - 18340 x 4.01/2"/M16/M122651.2310 107440
188 - 19440 x 4.01/2"/M16/M122761.2510 107459
196 - 20340 x 4.01/2"/M16/M122871.3210 148911
205 - 21440 x 4.01/2"/M16/M122961.3510 148920
219 - 2258"40 x 4.01/2"/M16/M123071.4110 107468
244 - 25040 x 4.01/2"/M16/M123321.5510 107477
267 - 27310"40 x 4.01/2"/M16/M123551.6210 107486
278 - 28440 x 4.01/2"/M16/M123661.6710 112718
299 - 30540 x 4.01/2"/M16/M123871.8010 107495
307 - 318 *40 x 4.01/2"/M16/M124001.9510 189974
