Pipe Clamps and Accessories

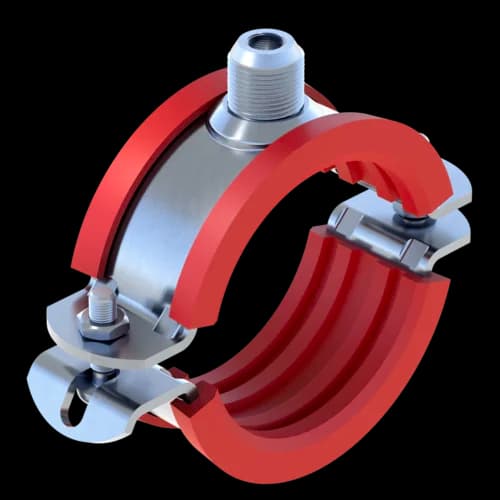

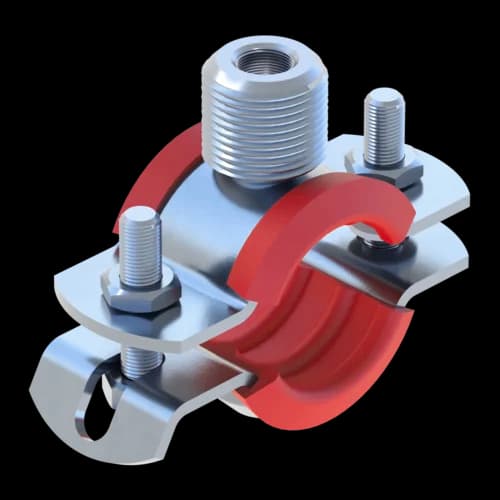

Stabil D-3G w/ Silicone Lining

Application

For soundproof installation of pipes required for all M&E services in industrial, residential and public buildings (as per DIN 4109).

Scope of delivery

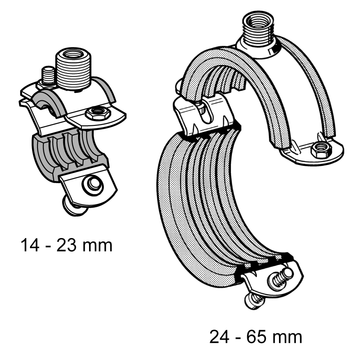

Sizes 14 to 115 mm are equipped with welded nuts for the clamping bolts. On the joint side, the clamping bolt is pre-assembled; the clamping bolt on the opposite side is mounted into the bore hole and retained by a plastic washer, thus preventing any accidental unscrewing.

For sizes 124 mm and larger the clamping bolts and the required nuts are supplied in loose form.

With welded 3G triple thread nut; with silicone sound absorption lining. Sizes 3/8" and 1/2": the silicone lining is only included in the pack, not fitted into the clamps.

For further adapter-based connection options via the external thread of the 3G triple thread, see product "Adapter AD f/f" (this chapter).

Technical Data

Size
[mm]
Working load (tension)
Tightening torque
[Nm]
14 - 23 1.8 kN 2
24 - 65 2.0 kN 2
67 - 115 2.0 kN 3
124 - 162 2.9 kN 5
165 - 305 8.0 kN 10

The recommended load is calculated using specific statistical methods relating to break load and is designed to restrict deflection to 1.5 mm or 2 % of the maximum applicable clamping diameter.

Material:
Metal components:
Steel, electro-galvanised
Sound absorption lining:
Silicone (see chapter "Sound Absorption Products").

Approvals / Compliance

VdS Approval No. G4950064



This product has been awarded the RAL quality marks "pipe supports" and "fire-tested pipe supports" and is subject to continuous external monitoring according to RAL GZ-655.

Pipe Clamp Stabil D-3G w/lining - G4950064 VdS PDF | 156.1 KB

Size range
[mm]
NBMaterial
W x th
[mm]
Thread
connection

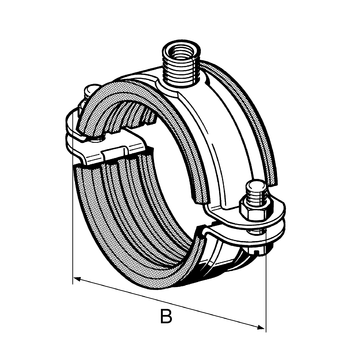

B
[mm]
W
[kg]
Quantity
[pack]
Part
number

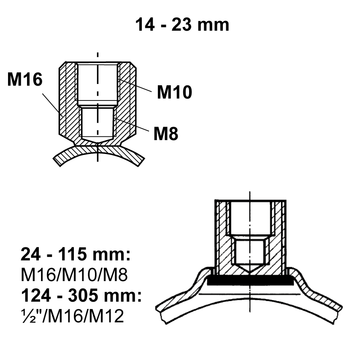

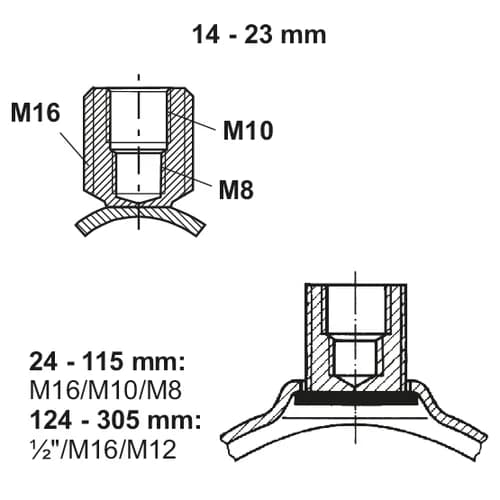

14 - 18 3/8"25 x 2.0M16/M10/M8 630.0850 108070
19 - 23 1/2"25 x 2.0M16/M10/M8 690.0950 108089
24 - 28 3/4"30 x 2.5M16/M10/M8 740.1350 108098
29 - 331 "30 x 2.5M16/M10/M8 810.1450 108104
33 - 3730 x 2.5M16/M10/M8 850.1550 108113
40 - 45 1 1/4"30 x 2.5M16/M10/M8 940.1650 108122
47 - 52 1 1/2"30 x 2.5M16/M10/M81040.1950 108131
53 - 5830 x 2.5M16/M10/M81100.2050 108140
60 - 65 2"30 x 2.5M16/M10/M81170.2150 108159

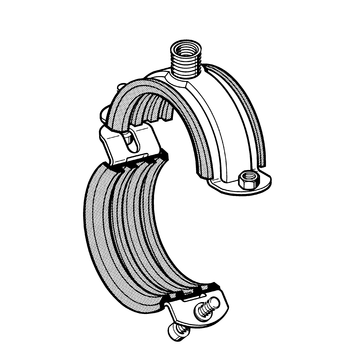

67 - 72 M30 x 3.0M16/M10/M81370.3125 115801
73 - 78 M2 1/2"30 x 3.0M16/M10/M81430.3325 115802
79 - 85 M30 x 3.0M16/M10/M81490.3225 115804
88 - 93 M3"30 x 3.0M16/M10/M81570.3725 115805
100 - 106 M30 x 3.0M16/M10/M81710.4025 115806
108 - 115 M4"30 x 3.0M16/M10/M81800.4325 115807
124 - 129 40 x 4.01/2"/M16/M122100.8710 108229
131 - 13740 x 4.01/2"/M16/M122180.9110 108238
138 - 144 5"40 x 4.01/2"/M16/M122250.9410 108274
148 - 15440 x 4.01/2"/M16/M122351.0010 108283
156 - 16240 x 4.01/2"/M16/M122431.0510 108292
165 - 171 6"40 x 4.01/2"/M16/M122551.1410 108308
177 - 18340 x 4.01/2"/M16/M122651.1810 108317
188 - 19440 x 4.01/2"/M16/M122761.2310 108326
196 - 20340 x 4.01/2"/M16/M122871.3010 154947
205 - 21440 x 4.01/2"/M16/M122961.4010 149879
219 - 225 8"40 x 4.01/2"/M16/M123071.4010 108335
244 - 25040 x 4.01/2"/M16/M123321.5110 108344
267 - 27310"40 x 4.01/2"/M16/M123551.7110 108353
299 - 30540 x 4.01/2"/M16/M123871.7910 108362
