Application

For installation of pipes required for all M&E services in industrial, residential and public buildings.

Scope of delivery

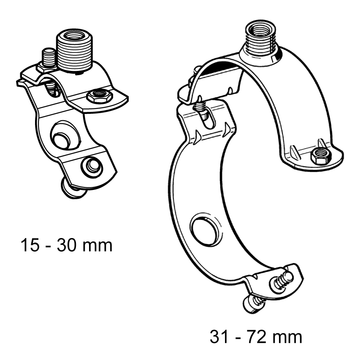

Sizes 15 to 129 mm are equipped with welded nuts for the clamping bolts. On the joint side, the clamping bolt is pre-assembled; the clamping bolt on the opposite side is mounted into the bore hole and retained by a plastic washer, thus preventing any accidental unscrewing.
For sizes 133 and larger the clamping bolts and the required nuts are supplied in loose form. From size 31 - 35 mm with welded in 3G triple thread nut.
For further adapter-based connection options via the external thread of the 3G triple thread nut, see product "Adapter AD f/f".

Installation

FM size range 1" to 4" is approved with ≥ M10 only.
For FM applications use M10 only.
For VdS applications use M10 only if size is >2" to 4".

Technical Data

Size [mm]
Working load (tension)
15 - 30
2.0 kN
31 - 129
5.0 kN
133 - 173
8.0 kN
176 - 316
12.5 kN

Material:
Steel, electro-galvanised

Approvals / Conformity

VdS-Approval No. G4920027, * = FM Approval (another pipe clamp with FM Approval is: Stabil D-M16)

Pipe Clamp Stabil D-3G wo/lining - G4920027 VdS PDF | 345.7 KB

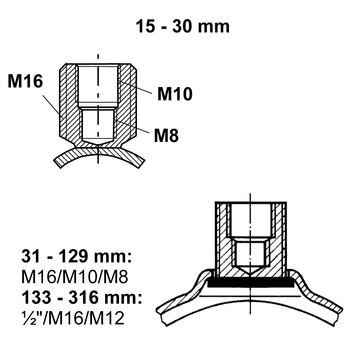

For the size ranges of 76 - 81 up to 124 - 129 two connection variants are temporarily available. For an approval-compliant (FM and VdS) installation of this sizes, for the size range 219 - 225 the thread connections M10 or M16 have to be used.

Size range
[mm]
NBMaterial
W x th
[mm]
Thread
connection
B
[mm]
W
[kg]
Quantity
[pack]

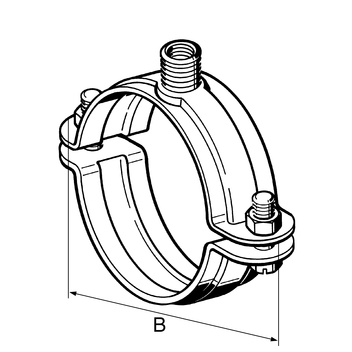

Part
number
15 - 19 3/8"25 x 2.0M16/M10/M8 570.0750 107705
20 - 241/2"25 x 2.0M16/M10/M8 630.0850 107714
25 - 303/4"25 x 2.0M16/M10/M8 690.0850 107723
31 - 35 *1"30 x 2.5M16/M10/M8 740.1250 107015
40 - 45 *1 1/4"30 x 2.5M16/M10/M8 850.1350 107024
48 - 53 *1 1/2"30 x 2.5M16/M10/M8 940.1550 107033
54 - 59 *30 x 2.5M16/M10/M81010.1650 107042
60 - 65 * 2"30 x 2.5M16/M10/M81080.1750 107051
67 - 72 *30 x 2.5M16/M10/M81140.1850 107060
76 - 81 M * 2 1/2"30 x 3.0M16/M10/M81370.2825 115759
82 - 87 M *30 x 3.0M16/M10/M81430.2925 115761
88 - 93 M * 3"30 x 3.0M16/M10/M81490.3125 115762
102 - 108 M *30 x 3.0M16/M10/M81630.3425 115763
110 - 116 M * 4"30 x 3.0M16/M10/M81710.3625 115764
124 - 129 M *30 x 3.0M16/M10/M81840.3925 115766
133 - 140 *40 x 4.01/2"/M16/M122100.7410 107130
140 - 148 * 5"40 x 4.01/2"/M16/M122180.7610 115885
149 - 155 *40 x 4.01/2"/M16/M122250.8110 107149
159 - 165 *40 x 4.01/2"/M16/M122350.8210 107158
167 - 173 *6"40 x 4.01/2"/M16/M122430.8510 107167
176 - 18440 x 4.01/2"/M16/M122550.9510 107176
188 - 19440 x 4.01/2"/M16/M122650.9810 107185
199 - 20540 x 4.01/2"/M16/M122761.0310 107194
207 - 21640 x 4.01/2"/M16/M122871.0710 148939
219 - 225 8"40 x 4.01/2"/M16/M122961.1110 107200
244 - 25040 x 4.01/2"/M16/M123211.2310 107219
267 - 27310"40 x 4.01/2"/M16/M123441.2510 107228
278 - 28440 x 4.01/2"/M16/M123551.3510 107237
297 - 30340 x 4.01/2"/M16/M123741.4210 107246
310 - 31640 x 4.01/2"/M16/M123871.4710 147600
