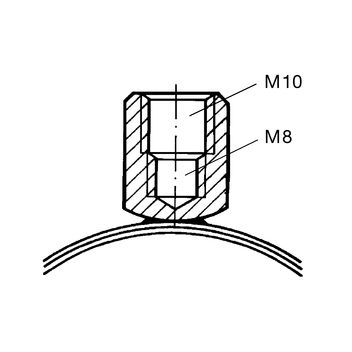

Two-piece pipe clamp with double threaded nut (M8/M10) for installing pipe systems for M&E services. For soundproof ceiling, floor and wall installations. With time-saving quick-set clip.
From 4" on, or when higher static loads occur, or under reversed bending stress, we recommend the use of a Stabil Pipe Clamp with lining.
After pressing together both parts of the clamp, the clamping bolt head must be located behind the angled profiles; then tighten clamping bolt (2 Nm).
Size [mm]|| Max. perm. |
working load (tension)
| 12 - 84|| 0.60 kN|
| 83 - 90|| 0.95 kN|
| 108 - 114|| 1.15 kN|
The recommended load is calculated using specific statistical methods relating to break load and is designed to restrict deflection to 1.5 mm or 2 % of the maximum applicable clamping diameter.
Perm. load FZperm,fi in case of fire
| Size range|
| FWD 30|
| FWD 60|
| FWD 90|
| FWD 120|
|12 - 84||270||120||70||40||35|| M10|
|83 - 90||300||110||80||30||45|| M10|
|108 - 114||510||260||170||130||46||M10|
| Clamp:|| Steel, electro-galvanised|
| Spring element:|| Spring steel|
| Sound absorption lining:|| SBR/EPDM (black) (see chapter "Sound Absorption Products")|
| Sound absorption:|| Up to 17 dB(A)|
Approvals / Compliance
| ||This product has been awarded the RAL quality marks "pipe supports" and "fire-tested pipe supports" and is subject to continuous external monitoring according to RAL GZ-655.|
* = no RAL quality mark "fire-tested pipe supports"
