Group: 1235
Two-piece clamp with quick-set clip and special lining for installing coated and uncoated plastic pipes (DIN and ANSI standards
Prevents diffusion of plasticisers; suitable for ceiling, floor and wall mounting with various connection options
Up to size 110 equipped with detachable spacers for sliding; for larger sliding installations, use Pipe Clamp Stabil D-3G with Slide Set or Slide Element
Info | Type | Size max. | DN | Thread connection | Weight | Quantity | Part number | |
| RATIO S-K 16 | 16,00 mm | DN 10 (3/8") | M8/M10 | 0,06 kg/pcs. | 100 pcs. | 148771 | ||
| RATIO S-K 20 | 20,00 mm | DN 20 (3/4") | M8/M10 | 0,067 kg/pcs. | 100 pcs. | 148780 | ||
| RATIO S-K 25 | 25,00 mm | DN 25 (1") | M8/M10 | 0,068 kg/pcs. | 100 pcs. | 148799 | ||
| RATIO S-K 32 | 32,00 mm | DN 32 (1 1/4") | M8/M10 | 0,077 kg/pcs. | 100 pcs. | 148805 | ||
| RATIO S-K 40 | 40,00 mm | DN 40 (1 1/2") | M8/M10/M16 | 0,094 kg/pcs. | 50 pcs. | 148814 | ||
| RATIO S-K 50 | 50,00 mm | DN 50 (2") | M8/M10/M16 | 0,106 kg/pcs. | 50 pcs. | 148823 | ||
| RATIO S-K 56 | 56,00 mm | DN 50 (2") | M8/M10/M16 | 0,117 kg/pcs. | 50 pcs. | 148832 | ||
| RATIO S-K 63 | 63,00 mm | DN 50 (2") | M8/M10/M16 | 0,12 kg/pcs. | 50 pcs. | 148841 | ||
| RATIO S-K 75 | 75,00 mm | DN 70 | M8/M10/M16 | 0,145 kg/pcs. | 25 pcs. | 148850 | ||
| RATIO S-K 90 | 90,00 mm | DN 80 (3") | M8/M10/M16 | 0,229 kg/pcs. | 25 pcs. | 155993 | ||
| RATIO S-K 110 | 110,00 mm | DN 100 (4") | M8/M10/M16 | 0,341 kg/pcs. | 25 pcs. | 156000 | ||

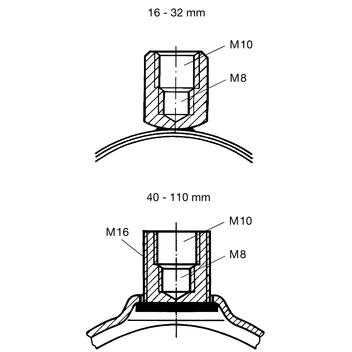

Two-piece clamp with quick-set clip and special lining for installing coated and uncoated plastic pipes of DIN and ANSI standard. No diffusion of plasticisers from the lining material into the plastic pipe. For ceiling, floor and wall mounting. Connections without adapter: M8, M10. Connections with Adapter (see this chapter): M12, M16, R 1/2', R 3/4' and R 1'. Up to size 110 equipped with spacers which allow sliding. To stop sliding, the spacers can be detached. For sliding installations from 4' on, we recommend the use of Pipe Clamp Stabil D-3G with Slide Set or Slide Element.
Certification
Max. temperature | 110 °C |
Min. temperature | -50 °C |
Fire Performance | Class B2 according to DIN 4102 |
Ultimate tensile strength | 6,00 N/mm² |
Elongation at break | 450 % |
Hardness | 55+ / -5° Shore |
Long-term performance | Weatherproof, ageing and ozone- resistant (DIN 53508 and DIN 53509) |
Rebound elasticity | 45 % |
Primary element material | steel |
Isolating element material | SBR/EPDM |
Connecting element material | steel, PP |
Surface finish | electro galvanized (Fe//Zn) |
Corrosion protection class | C2 |
Type | -VZ,perm. |
RATIO S-K 16 | 0,65 kN |
RATIO S-K 20 | 0,65 kN |
RATIO S-K 25 | 0,65 kN |
RATIO S-K 32 | 0,65 kN |
RATIO S-K 40 | 0,65 kN |
RATIO S-K 50 | 0,65 kN |
RATIO S-K 56 | 0,65 kN |
RATIO S-K 63 | 0,65 kN |
RATIO S-K 75 | 0,65 kN |
RATIO S-K 90 | 1,00 kN |
RATIO S-K 110 | 1,20 kN |
The recommended load is calculated using specific statistical methods relating to break load and is designed to restrict deflection to 1.5 mm or 2 % of the maximum applicable clamping diameter.
