Application

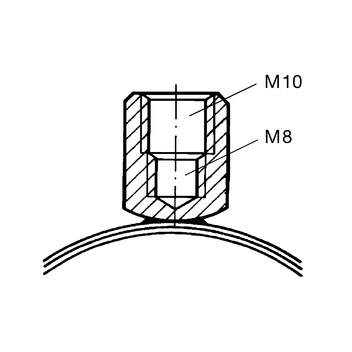

Two-piece pipe clamp with double thread nut (M8/M10) for installing pipe systems for M&E services. Suitable for soundproof installation of pipes made of plastic, copper, steel (also stainless steel), mainly for high temperatures. With a time-saving quick-set clip.
From 3" on, or when higher static loads occur, or under reversed bending stress, we recommend the use of a Stabil pipe clamp with silicone lining.

Installation

After pressing together both parts of the clamp, the clamping bolt head must be located behind the angled profiles; then tighten clamping bolt (2 Nm).

Technical Data

Size [mm]
Max. perm.
working load (tension)
12 - 84
0.60 kN
83 - 90
0.95 kN

The recommended load is calculated using specific statistical methods relating to break load and is designed to restrict deflection to 1.5 mm or 2 % of the maximum applicable clamping diameter.

Material:
Clamp:
Steel, electro-galvanised
Spring element:
Spring steel
Sound absorption lining:
Silicone red (see chapter "Sound Absorption Products")
Sound absorption:
Up to 16 dB(A)

Approvals / Compliance



This product has been awarded the RAL quality marks "pipe supports" and "fire-tested pipe supports" and is subject to continuous external monitoring according to RAL GZ-655.

Size range
[mm]
For Pipes
acc. to DIN 2440
Thread
connections
W
[kg]
Quantity
[pack]
Part
number
12 - 201/4" - 3/8"20 x 1.50.05100 166401
21 - 271/2"- 3/4"20 x 1.50.06100 166410
28 - 351"20 x 1.50.07100 166429
38 - 451 1/4"20 x 1.50.08 50 166438
48 - 561 1/2"20 x 1.50.09 50 166447
57 - 632"20 x 1.50.10 50 166456
64 - 7120 x 1.50.11 25 166465
74 - 842 1/2"20 x 1.50.12 25 166474
83 - 903"20 x 2.00.15 25 166483
