Application

For the installation of pipes required for all M&E services in industrial, residential and public buildings.

Scope of delivery

Sizes 15 to 129 mm are equipped with welded nuts for the clamping bolts. On the joint side, the clamping bolt is pre-assembled; the clamping bolt on the opposite side is mounted into the bore hole and retained by a plastic washer, thus preventing any accidental unscrewing.

For sizes 133 and larger the clamping bolts and the required nuts are supplied in loose form.

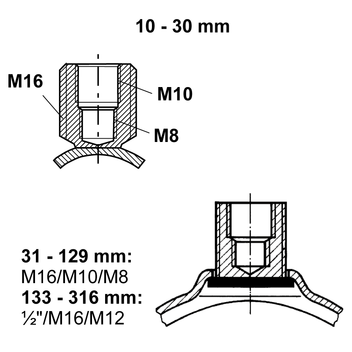

With welded in 3G triple thread nut; without sound absorption lining. For further adapter-based connection options via the external thread of the 3G triple thread nut, see product "Adapter AD f/f" (this chapter).

Technical Data

Size
[mm]
Max. working load
(tension)
10 - 72
4,0 kN
76 - 129
5,0 kN
133 - 173
8,0 kN
176 - 316
12,5 kN

Material:
Steel, HCP

Approvals / Compliance

VdS-Approval No. G4920027, * = FM Approval

Size range
[mm]
NBMaterial
W x th
[mm]
Thread
connection
B
[mm]
W
[kg]
Quantity
[pack]
Part
number
10 - 1425 x 2.0M16/M10/M8600.0750 113832
15 - 193/8"25 x 2.0M16/M10/M8570.0750 112216
20 - 241/2"25 x 2.0M16/M10/M8630.0850 112217
25 - 303/4"25 x 2.0M16/M10/M8690.0850 112218
31 - 35 *1"30 x 2.5M16/M10/M8740.1250 112219
36 - 4130 x 2.5M16/M10/M8810.1350 113833
40 - 45 *1 1/4"30 x 2.5M16/M10/M8850.1350 112220
48 - 53 *1 1/2"30 x 2.5M16/M10/M8940.1550 112221
54 - 5930 x 2.5M16/M10/M81010.1650 112222
60 - 65 *2"30 x 2.5M16/M10/M81080.1750 112223
67 - 7230 x 2.5M16/M10/M81140.1850 112224
76 - 81 M *2 1/2"30 x 3.0M16/M10/M81370.2825 115767
82 - 87 M30 x 3.0M16/M10/M81430.2925 115768
88 - 93 M *3"30 x 3.0M16/M10/M81490.3125 115769
102 - 108 M30 x 3.0M16/M10/M81630.3425 115770
110 - 116 M *4"30 x 3.0M16/M10/M81710.3625 115771
124 - 129 M30 x 3.0M16/M10/M81840.3925 115772
133 - 14040 x 4.01/2"/M16/M122100.7410 112231
140 - 148 *5"40 x 4.01/2"/M16/M122180.7610 112232
149 - 15540 x 4.01/2"/M16/M122250.8110 112233
159 - 16540 x 4.01/2"/M16/M122350.8210 112234
167 - 173 *6"40 x 4.01/2"/M16/M122430.8510 112235
176 - 18440 x 4.01/2"/M16/M122550.9510 112236
188 - 19440 x 4.01/2"/M16/M122650.9810 112237
199 - 20540 x 4.01/2"/M16/M122761.0310 112238
207 - 21640 x 4.01/2"/M16/M122871.0710 112239
219 - 2258"40 x 4.01/2"/M16/M122961.1110 112240
244 - 25040 x 4.01/2"/M16/M123211.2310 112242
267 - 27310"40 x 4.01/2"/M16/M123441.2510 112244
278 - 28440 x 4.01/2"/M16/M123551.3510 112245
297 - 30340 x 4.01/2"/M16/M123741.4210 112246
310 - 31640 x 4.01/2"/M16/M123871.4710 112247
