High Corrosion Protected Products

Stabil D-3G w/lining HCP

Application

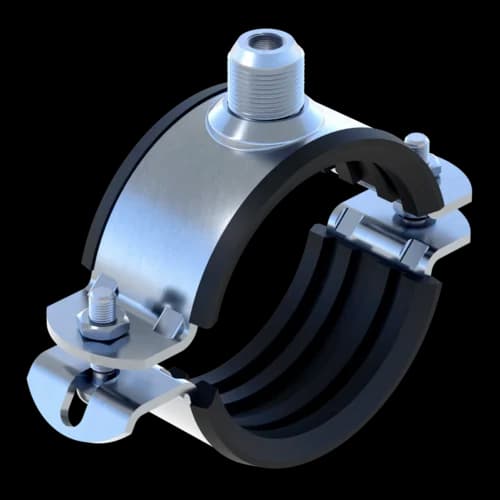

Pipe Clamp for the installation of pipes required for all M&E services in industrial buildings. Pipe clamp with sound absorption lining suitable for sound proof pipe fixation according to DIN 4109.

Scope of delivery

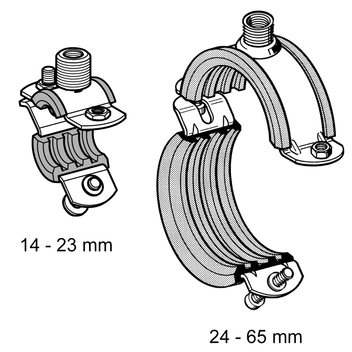

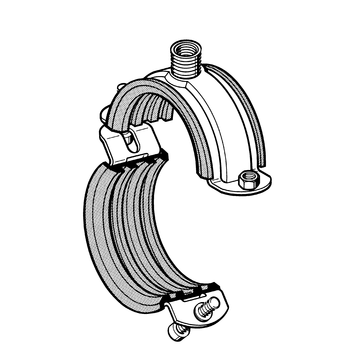

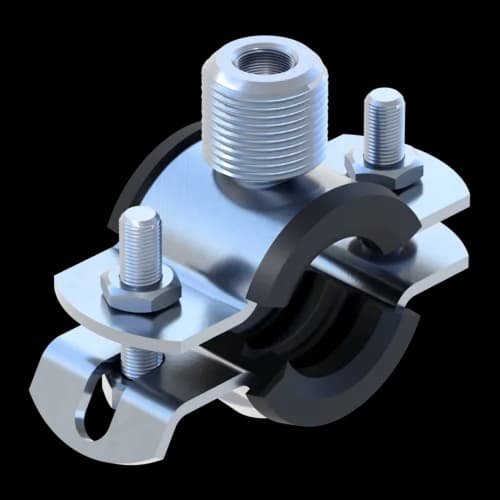

Sizes 14 to 115 mm are equipped with articulation and welded-on nuts for the clamping bolts. On the joint side, the clamping bolt is pre-assembled; the clamping bolt on the opposite side is mounted into the bore hole and retained by a plastic washer, thus preventing any accidental unscrewing.
For sizes 124 mm and larger the clamping bolts and nuts required are supplied in bulk. For further connecting options with Adapters, see product "Adapter AD f/f" (this chapter).

Installation

FM size range 1" to 4" is approved with ≥ M10 only.
For FM applications use M10 only.

Technical Data

Size
[mm]
Max. perm.
load (tension)
Tightening torque
[Nm]
14 - 23 1.8 kN 2
24 - 65 2.0 kN 3
67 - 115 2.0 kN 3
124 - 162 2.9 kN 5
165 - 318 8.0 kN 10

The max. permissible load is calculated using specific statistical methods relating to break loads and is designed to restrict deflection to 1.5 mm or 2 % of the maximum applicable clamping diameter.

Perm. load FZperm,fi in case of fire

Size range
[mm]
FWD 30
[N]
FWD 60
[N]
FWD 90
[N]
FWD 120
[N]
Deformation
δmax [mm]
Thread

14 - 23 380 200 140 - 49 M10
24 - 65 500 250 170 120 44 M10
67 - 115 1000 650 500 400 96 M10
124 - 162 2200 1200 850 600 96 M12
165 - 305 2400 1400 1000 850 104 M12

Material:
Pipe Clamp:
Steel, HCP
Sound absorption lining:
SBR/EPDM, black glued-in(for rubber profiles see chapter "Sound Absorption Elements")

Approvals / Conformity

FM-Approval für die Spannbereiche 29 - 162




This product has been awared the RAL quality mark "pipe supports" and "fire-tested pipe supports" and is subject to continuous external monitoring according to RAL GZ-655.


* = no quality mark

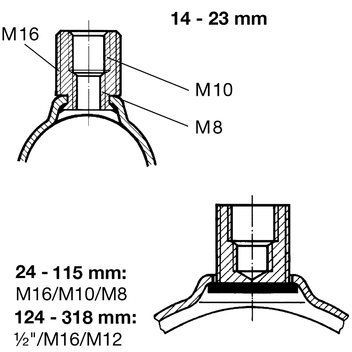

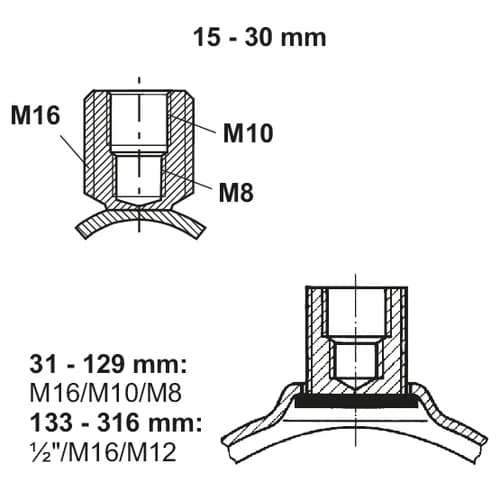

Size range
[mm]
NBMaterial
W x th
[mm]
Thread
connection
B
[mm]
W
[kg]
Quantity
[pack]
Part
number
14 - 183/8"25 x 2.0M16/M10/M8630.0850 112249
19 - 231/2"25 x 2.0M16/M10/M8690.0950 112250
24 - 283/4"30 x 2.5M16/M10/M8740.1250 112251
29 - 331"30 x 2.5M16/M10/M8810.1450 112252
33 - 3730 x 2.5M16/M10/M8850.1550 112253
40 - 451 1/4"30 x 2.5M16/M10/M8940.1650 112254
47 - 521 1/2"30 x 2.5M16/M10/M81040.1850 112255
53 - 5830 x 2.5M16/M10/M81100.1950 112256
60 - 652"30 x 2.5M16/M10/M81170.2150 112257
67 - 72 M30 x 3.0M16/M10/M81370.3025 115781
73 - 78 M2 1/2"30 x 3.0M16/M10/M81430.3125 115782
79 - 85 M30 x 3.0M16/M10/M81490.3325 115783
88 - 93 M3"30 x 3.0M16/M10/M81570.3625 115784
100 - 106 M30 x 3.0M16/M10/M81710.3925 115785
108 - 115 M4"30 x 3.0M16/M10/M81800.4225 115786
124 - 12940 x 4.01/2"/M16/M122100.8610 112266
131 - 13740 x 4.01/2"/M16/M122180.9010 112267
138 - 1445"40 x 4.01/2"/M16/M122250.9410 112268
148 - 15440 x 4.01/2"/M16/M122350.9810 112269
156 - 16240 x 4.01/2"/M16/M122431.0210 112270
165 - 1716"40 x 4.01/2"/M16/M122551.0810 112271
177 - 18340 x 4.01/2"/M16/M122651.1810 112272
188 - 19440 x 4.01/2"/M16/M122761.2210 112273
196 - 20340 x 4.01/2"/M16/M122871.2910 112274
205 - 21440 x 4.01/2"/M16/M122961.3210 112275
219 - 2258"40 x 4.01/2"/M16/M123071.3810 112276
244 - 25040 x 4.01/2"/M16/M123321.5210 112278
267 - 27310"40 x 4.01/2"/M16/M123551.6010 112280
278 - 28440 x 4.01/2"/M16/M123661.6710 112281
299 - 30540 x 4.01/2"/M16/M123871.7610 112282
307 - 318 *40 x 4.01/2"/M16/M124001.8310 112283
