Installation tool for Hollow Space Anchors Metal ANC-M.

Heavy-duty connection element which, in combination with grub screws (M8 up to M16), are suitable for mounting pipes, ducts and equipments to steel beams (I-, T-, U-and angle steel beams). The combination with a Universal Joint provides for vertically aligned attachment to inclined beams. Can serve as single mounting element for installing crossbars and for fixing cantilever structures.

Heavy-duty connection element which, in combination with grub screws (M8 up to M16), are suitable for mounting pipes, ducts and equipments to steel beams (I-, T-, U-and angle steel beams). The combination with a Universal Joint provides for vertically aligned attachment to inclined beams. Can serve as single mounting element for installing crossbars and for fixing cantilever structures. Due to their special base profile, Beam Clamps TCS 1 can also be slid along and retained in the opening of Sikla Channels of the 41 series.

Heavy-duty connection element, which in combination with grub screws (M8 or M10), are suitable for mounting pipes, ducts and equipment to steel beams (I-, T-, U and angle steel beams). The combination with a Universal Joint ss provides for vertically aligned attachment to inclined beams. Can serve as single mounting element, for installing crossbars and for fixing cantilever structures. Due to their special base profile, Beam Clamps TCS can also be slid along and retained in the opening of Sikla Channels MS 41.

Heavy-duty connection elements which, in combination with Grub Screws (M10), are suitable for mounting pipes, ducts and equipment to steel beams (I-, T-, U- and angle steel beams). The combination with a Universal Joint ss provides for vertically aligned attachment to inclined beams. Can serve as single mounting elements, for installing crossbars and for fixing cantilever structures. Due to their special base profile, Beam Clamps TCS 1 can also be slid along and retained in the opening of Sikla Channels MS 41.

Heavy-duty connection elements which, in combination with Grub Screws (M10), are suitable for mounting pipes, ducts and equipment to steel beams (I-, T-, U- and angle steel beams). The combination with a Universal Joint ss provides for vertically aligned attachment to inclined beams. Can serve as single mounting elements, for installing crossbars and for fixing cantilever structures. Due to their special base profile, Beam Clamps TCS 1 can also be slid along and retained in the opening of Sikla Channels MS 41.

The TCS F Beam Clamp is a solid element designed for connecting pipes, ducts and other equipment to steel sections (UB, UC, PFC sections). A self-locking mechanism allows positioning by using one hand. The TCS F Beam Clamp can be used both for single drop rods and, in pairs, for trapezes.

Universal clamping element for bi-lateral attachment of crossbars for pipe runs, ducts, cable lines and equipment to steel beams.

Universal clamping element for all load bearing end plate and channel connections to existing steelwork without welding or drilling.

Universal clamping element for bi-lateral attachment of crossbars for pipe runs, ducts, cable lines and equipment to steel beams.

Universal clamping element for bi-lateral attachment of crossbars for pipe runs, ducts, cable lines and equipment to steel beams. The maximum clamping range may be extended by up to 10 mm by using spacers. Any thicker spacers should be welded to the crossbar.

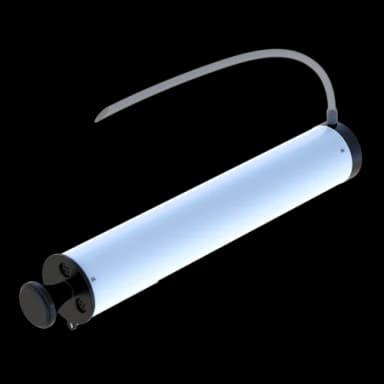

For cleaning the borehole when using the VMZ, VMU plus and VMH injection systems.

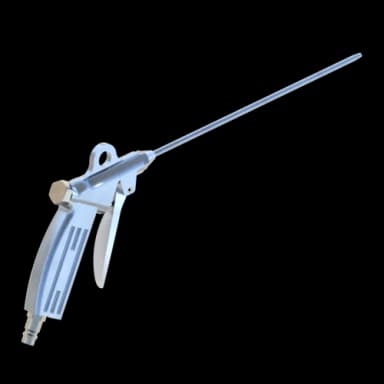

For cleaning the borehole when using the VMZ and VMU plus injection systems.

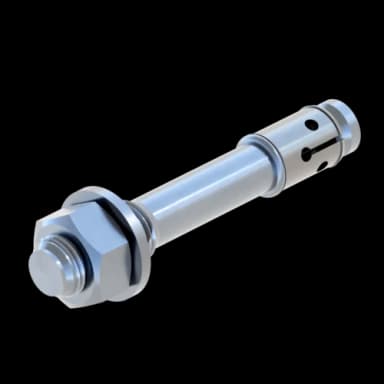

Anchor for push-through mounting in M&E services and plant construction in concrete tensile zones. This anchor combines high permissible loads with close edge and centre distances. Suitable for anchoring in cracked and non-cracked concrete - fixation of pipelines, channels, brackets, etc. in closed rooms - except for damp locations. No special drill required. Drill diameter is the same as the thread size. Simple and quick mounting due to its push-through concept. Drive-in hammer zone for preventing any thread damage.

Anchor in A4 for push-through mounting in M&E services and plant construction in concrete tensile zones. This anchor combines high permissible loads with close edge and centre distances. Suitable for anchoring in cracked and non-cracked concrete - fixation of pipelines, channels, brackets, etc. in closed rooms - except for damp locations. No special drill required. Drill diameter is the same as the thread size. Simple and quick mounting due to its push-through concept. Drive-in hammer zone for preventing any thread damage.

For fitting Bolt Screws by means of an electric screwdriver.

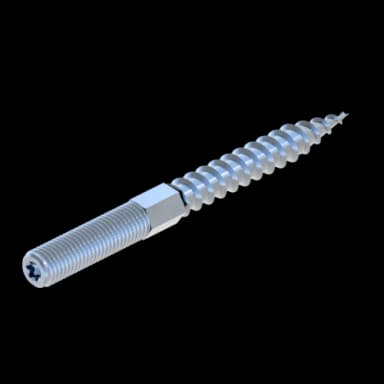

For creating a metric threaded connection in wood-based materials or plastic dowels in masonry or concrete.

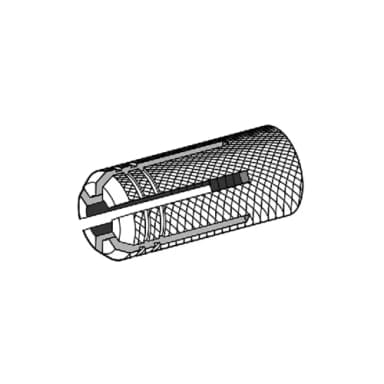

Brass Anchors with metric thread which have a gentle cone and a milled surface. They guarantee high holding forces, are safe against rotation and are anti-skidding. No need of special drills. Suitable for concrete, solid brick, natural stones, clinker brick, sand-lime bricks, solid wood and laminated timber. For fixing of channels, brackets, pipelines etc. Not suitable for humidors.

Suitable for hole saw LS 22 and LS 25.

Developed for COFRASTA 40 composite ceilings. May be used for single or crossbar mounting solutions. The holder is mainly used in ventilation systems.

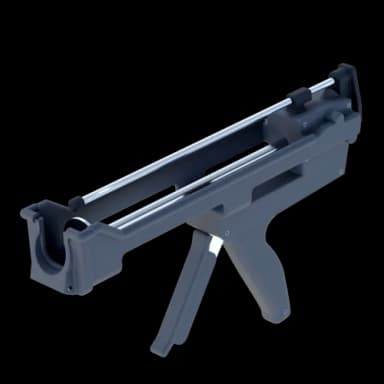

Professional tool to press the resin out of the cartridge.

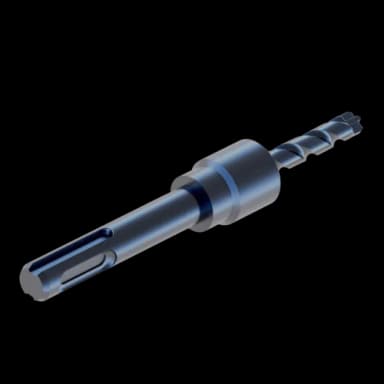

By using the collar drill, a sufficiently deep, compliant and uniform borehole depth is achieved.

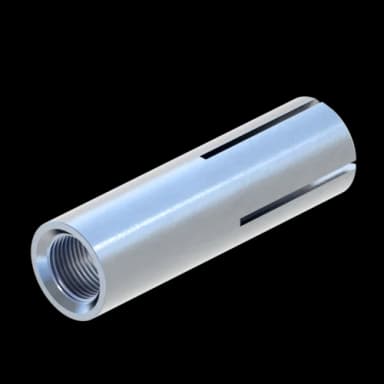

Hammerset Anchor for multiple attachment in cracked and single attachment in non-cracked concrete. Suitable for fixing pipelines, channels, etc. meeting the respective approval requirements. To be used in structural parts under dry indoor conditions, as well as outdoor constructions (including industrial ambiance and coastal areas) or damp locations provided no special aggressive conditions are given. No special drill is required. Setting Tool for Drive Plug is to be used as setting tool for distance-controlled forced expansion. Suitable for put-before assembly.

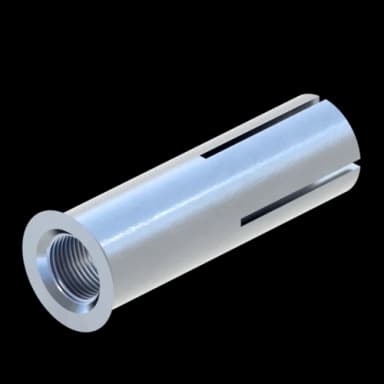

Drop-In Anchor for single fixing in non-cracked concrete and multiple fixing in cracked concrete. Suitable for fixing pipelines, channels, etc. meeting the respective approval requirements. The anchor must only be used for dry interiors. For damp locations and outdoor constructions the stainless steel version is required. No special drill required. Setting tool for distance-controlled forced expansion- Suitable for push-through mounting.
