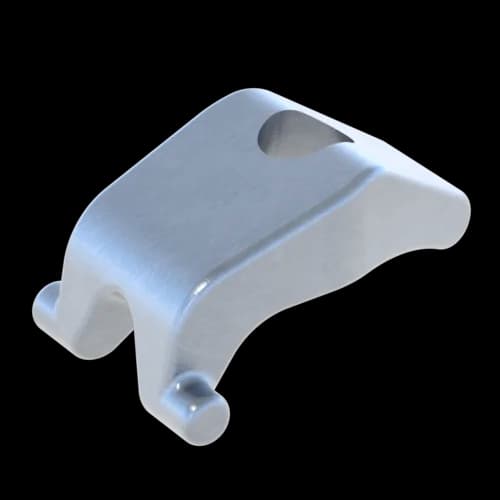

Beam Clip SPA P1
Group: 1331

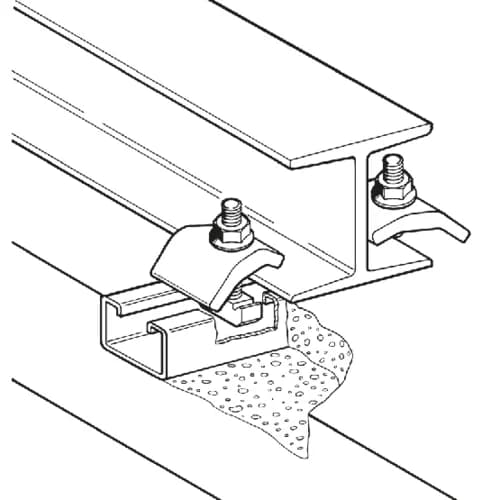

Universal clamping element for bi-lateral attachment of crossbars to steel girders on both sides
Suitable for pipe runs, ducts, cable trays and equipment
Overview of Types
General Information

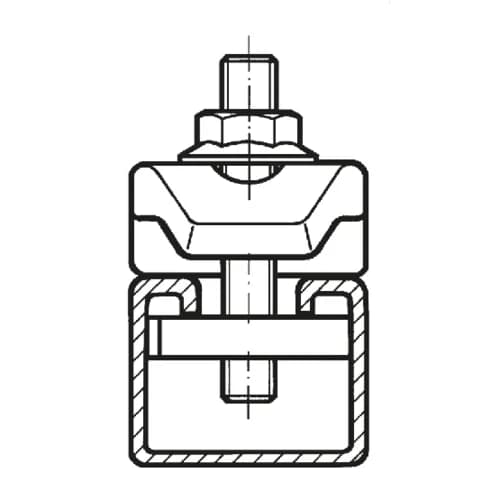

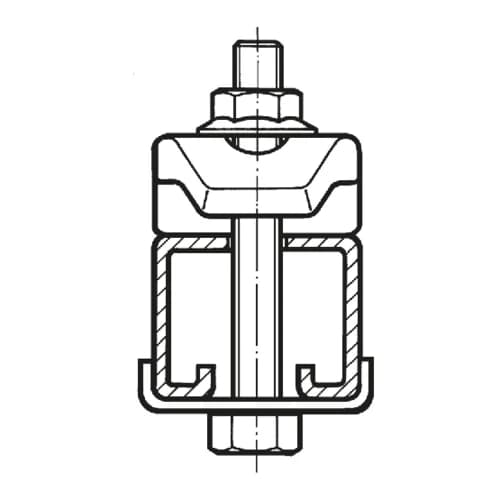

Universal clamping element for bi-lateral attachment of crossbars for pipe runs, ducts, cable lines and equipment to steel beams. The maximum clamping range may be extended by up to 10 mm by using spacers. Any thicker spacers should be welded to the crossbar.
Technical specifications
Material base body | cast steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Load range
Type | -VZ,perm. | VZ,perm. |
SPA P1 | 4,00 kN | 4,00 kN |
Software
This product is available in the following software.
Installation
Size range: 1 - 23 mm
For further information on installation, see the document with installation instructions.
Documents
Datasheets / Installation
- Installation - Beam Clip P
PDF (0.10MB)
