Bolt Anchor AN BZ plus A4
Group: 1704
Anchor in A4 for push-through mounting in concrete tensile zones for M&E services and plant construction

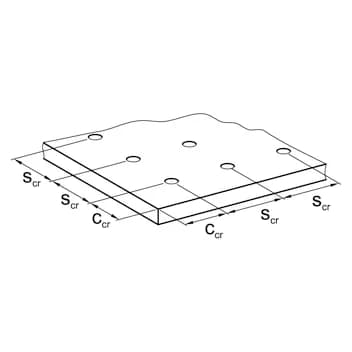

High permissible loads with close edge and centre distances, suitable for cracked and non-cracked concrete
Simple and quick installation with matching drill diameter and drive-in hammer zone to protect threads
Overview of Types
General Information
Anchor in A4 for push-through mounting in M&E services and plant construction in concrete tensile zones. This anchor combines high permissible loads with close edge and centre distances. Suitable for anchoring in cracked and non-cracked concrete - fixation of pipelines, channels, brackets, etc. in closed rooms - except for damp locations. No special drill required. Drill diameter is the same as the thread size. Simple and quick mounting due to its push-through concept. Drive-in hammer zone for preventing any thread damage.
Certification
Sikla Approval ETA-10/0259
FM-Approval for M10, M12, M16 only for Standard anchoring depth
VdS compliant for all sizes
Shock approval issued by the Federal Office for Civil Defence, Bern (Switzerland)
Technical specifications
Material base body | Stainless Steel A4 |
Corossion class | CRC II – III (C4 – C5 acc. to DIN EN ISO 12944-2) |
Software
This product is available in the following software.

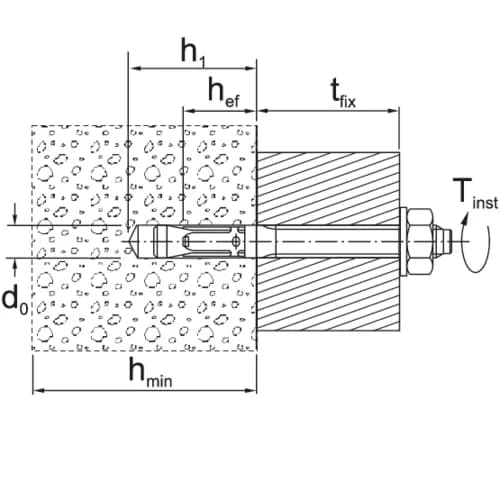

Installation
1. Drill bore hole according to the minimum bore hole depth perpendicularly to the surface.
2. Remove dirt from hole.
3. Drive the anchor into concrete up to its embedment mark.
4. Immediately resilient after tightening with the torque wrench T _inst indicated in the table below. Advices of the mounting instruction are to be respected!
