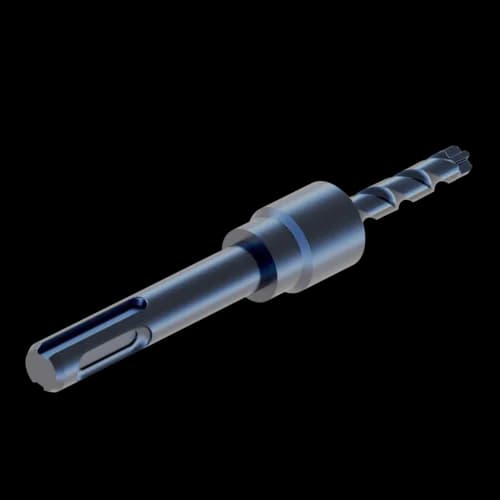

Drill Bit ANT BB
Group: 8103
Bund drill ensures that the borehole is sufficiently deep and uniform in depth.
Compliant with requirements for secure fastenings
Overview of Types
General Information
By using the collar drill, a sufficiently deep, compliant and uniform borehole depth is achieved.
Certification
Technical specifications
Material base body | steel |
Material sliding element | steel, hardened |
Corossion class | C2 |
Installation
| Type | Suitable for Drop-in anchor | Suitable Collar Drill BB |
|---|---|---|
| ASW M8 × 25 | AN ES M8 × 25 | ANT BB 10 × 25 |
| ASW M8 × 30 | AN ES M8 × 30 | ANT BB 10 × 30 |
| ASW M8 × 40 | AN ES M8 × 40 | ANT BB 10 × 40 |
| ASW M10 × 25 | AN ES M10 × 25 | ANT BB 12 × 25 |
| ASW M10 × 30 | AN ES M10 × 30 | ANT BB 12 × 30 |
| ASW M10 × 40 | AN ES M10 × 40 | ANT BB 12 × 40 |
