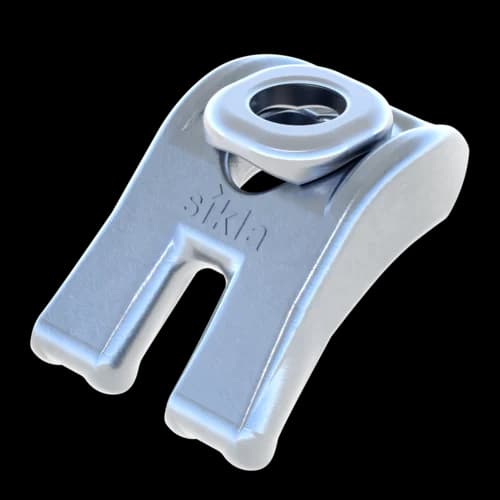

Beam Clip SPA 5P AU HCP
Group: 1831
Universal clamping element for all load-bearing end plate and channel connections to existing steelwork without welding or drilling
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
Type AU
Group: 1831
Universal clamping element for all load-bearing end plate and channel connections to existing steelwork without welding or drilling
Position the Beam Clip so that the slit side of the clip is in contact with the connecting part and the head of the clip against the existing (primary) steelwork to which the assembly is being fastened. Insert the hex bolt and tighten hex nut to the required installation torque.
The rounded support segment of the Beam Clip ensures that a form-fit contact is produced which prevents shifting or bending stress. Therefore a continuous Beam Clip preload force is ensured.
Tightening torques:
| Type | Tightening torque MA [Nm] / plus revolution | Clamping range [mm] |
|---|---|---|
| M12 AU | 60 / 90° | 1 - 30 |
| M16 AU | 140 / 90° | 4 - 40 |
For further information on installation, see the document with installation instructions.
