Group: 1337
Solid connection element for secure mounting of pipes, ducts, and devices on steel profiles such as I-beams, T-beams, U-beams, and angle beams.
Flexible alignment even on inclined beams when combined with the universal joint – for vertical installations.
Versatile use as a single fastener or for mounting crossbars and cantilevered structures.
Tighten the clamping bolt of the Beam Clamp first by hand, then tighten down with a spanner according to the mounting structures. The hardened point of the clamping bolt will penetrate the comparatively soft material of the beam, ensuring a solid and highly secure connection. Tighten the locking nut for securing the installation.
Note: Respect relevant mounting instructions! For FM-construction use thread ≥ M10 only!
PDF (0.57MB)
Info | Type | Max. flange thickness | Thread connection | Weight | Quantity | Part number | |

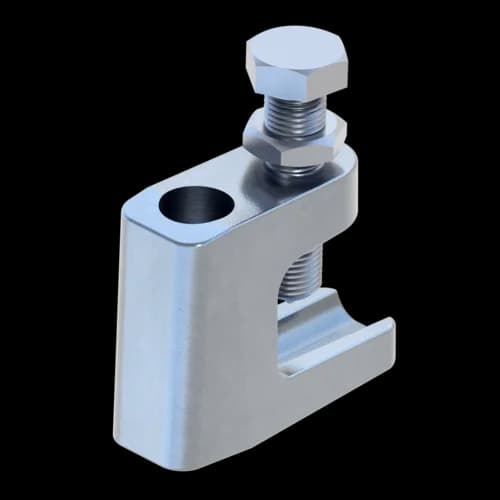

| TCS 0 LC | 18,00 mm | ø10 | 0,112 kg/pcs. | 50 pcs. | 156648 | ||
| TCS 0 M 8/M 8 | 22,00 mm | M8/M8 | 0,143 kg/pcs. | 50 pcs. | 178283 | ||

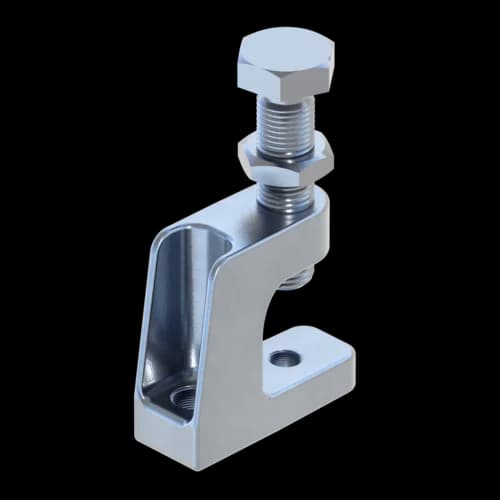

| TCS 0 M 8/M10 | 22,00 mm | M8/M10 | 0,14 kg/pcs. | 50 pcs. | 174206 | ||

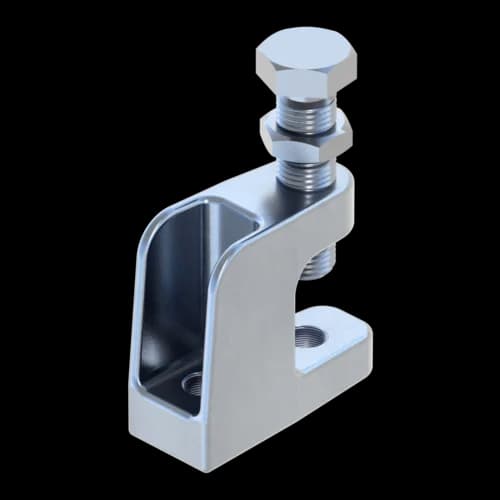

| TCS 2 M12/M12 | 26,00 mm | M12/M12 | 0,292 kg/pcs. | 25 pcs. | 174224 | ||
| TCS 2 M12/M16 | 26,00 mm | M12/M16 | 0,277 kg/pcs. | 25 pcs. | 174215 | ||
Heavy-duty connection element which, in combination with grub screws (M8 up to M16), are suitable for mounting pipes, ducts and equipments to steel beams (I-, T-, U-and angle steel beams). The combination with a Universal Joint provides for vertically aligned attachment to inclined beams. Can serve as single mounting element for installing crossbars and for fixing cantilever structures.
Certification
Material base body | cast steel |
Material connecting element | steel |
Class | 8.8 |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Type | -VZ,perm. |
TCS 0 LC | 3,50 kN |
TCS 0 M 8/M 8 | 3,50 kN |
TCS 0 M 8/M10 | 3,50 kN |
TCS 2 M12/M12 |
Software
This product is available in the following software.
8,50 kN
TCS 2 M12/M16 | 8,50 kN |
