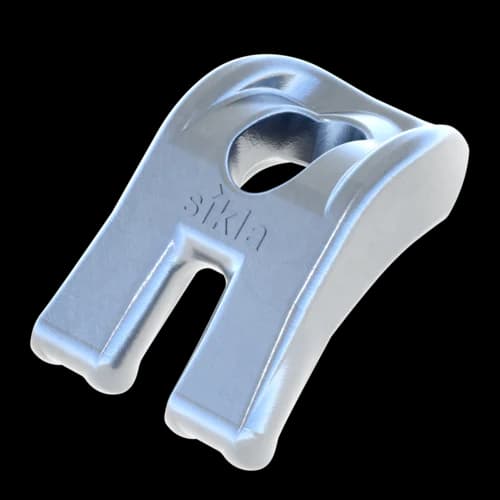

Beam Clip SPA 5P A4
Group: 1731

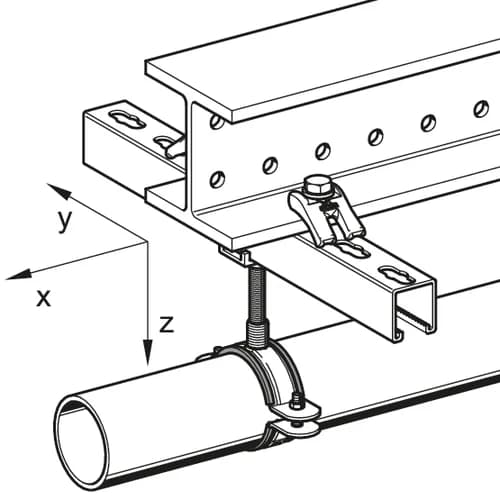

Universal clamping element for bi-lateral attachment of crossbars for pipe runs, ducts, cable lines and equipment to steel beams
Choose your country
Go to your local Sikla page and discover offers for your country or sales region:
Country
Group: 1731
Universal clamping element for bi-lateral attachment of crossbars for pipe runs, ducts, cable lines and equipment to steel beams

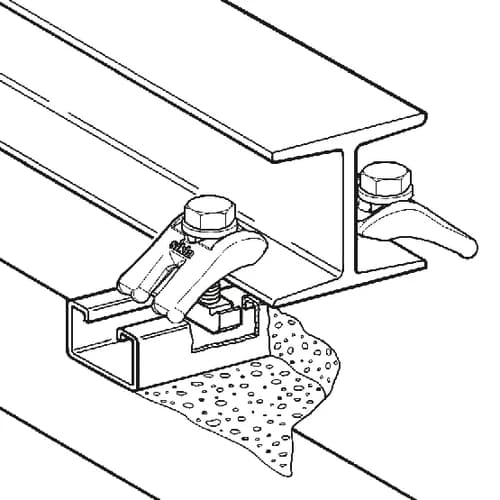

Position the Beam Clip with the slit side on the component, the lug has to be positioned on the steel girder. Then insert the appropriate hexagon bolt und tighten it with washer and nut.
Tightening torques:
| Type | Tightening torque MA [Nm] / plus revolution | Clamping range [mm] |
|---|---|---|
| M12 | 60 / 90° | 1 - 30 |
| M16 | 140 / 90° | 4 - 40 |
For further information on installation, see the document with installation instructions.
Universal clamping element for bi-lateral attachment of crossbars for pipe runs, ducts, cable lines and equipment to steel beams.
Certification
Primary element material | Stainless Steel VA |
Corrosion protection class | CRC II – III (C4 – C5 acc. to DIN EN ISO 12944-2) |
Type | -VX,perm. | VX,perm. | -VZ,perm. | VZ,perm. |
SPA 5P M12 A4 | 2,50 kN | 2,50 kN | 11,00 kN | 11,00 kN |
SPA 5P M16 A4 | 3,00 kN | 3,00 kN | 13,90 kN | 13,90 kN |
1) These value refer to the use of a standard stainless steel hexagon screw of strength class 70.
2) These values refer to the worst-case scenario for flange thicknesses of 30 mm (M12) or 40 mm (M16) and a friction coefficient μₛ ≥ 0.2. Any tensile force Fz acting on the flange has not been taken into account.
Info | Type | Weight | Quantity | Part number | |
| SPA 5P M12 A4 | 0,16 kg/pcs. | 20 pcs. | 803802 | ||
| SPA 5P M16 A4 | 0,27 kg/pcs. | 20 pcs. | 803803 | ||
