Beam Clip SPA 5P M12 A4
Group: 1731
Part number 803802
Universal clamping element for bi-lateral attachment of crossbars for pipe runs, ducts, cable lines and equipment to steel beams

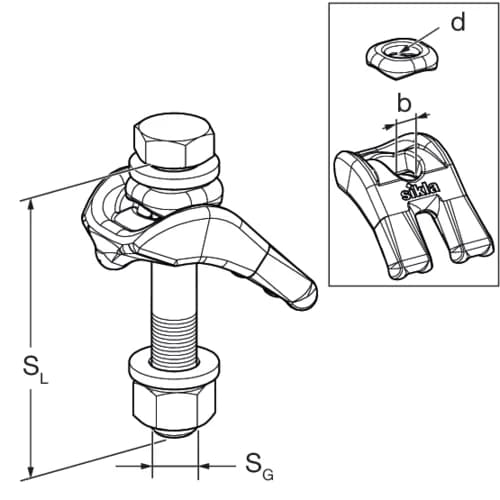

Technical Data
b | 13 mm |
d | 13 mm |
Load range
-VX,perm. | 2,50 kN |
VX,perm. | 2,50 kN |
-VZ,perm. | 11,00 kN |
VZ,perm. | 11,00 kN |
The specified F(z) data relate to the application of a standard stainless steel hexagon bolt with strength class 70. The specified F(x) data relate to the worst case with flange thicknesses 30 mm (M12) or 40 mm (M16) as well as a coefficient of static friction µ(adhesion) = 0.20. A possibly operating tensile force F(z) isn't included.
Technical specifications
Material base body | Stainless Steel VA |
Corossion class | CRC II – III (C4 – C5 acc. to DIN EN ISO 12944-2) |
Certification
Installation
Position the Beam Clip with the slit side on the component, the lug has to be positioned on the steel girder. Then insert the appropriate hexagon bolt und tighten it with washer and nut.
Tightening torques:
| Type | Tightening torque MA [Nm] / plus revolution | Clamping range [mm] |
|---|---|---|
| M12 | 60 / 90° | 1 - 30 |
| M16 | 140 / 90° | 4 - 40 |
For further information on installation, see the document with installation instructions.
Documents
- Installation - Beam Clip SPA 5P HCP
PDF (0.16MB)
