TCS 1

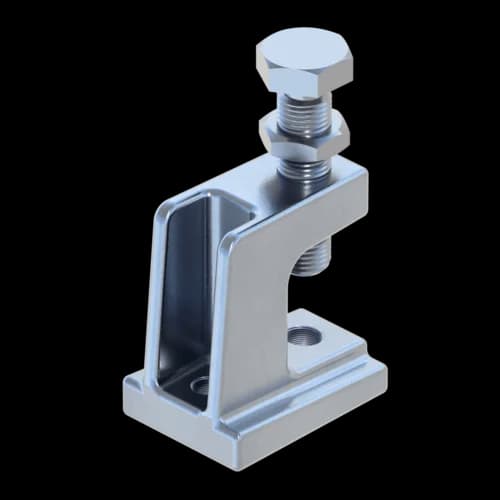

Beam Clamp TCS 1 A4
Group: 1737
Solid connecting element for mounting pipes, ducts and devices on steel profiles
Combination with Universal Joint ss enables vertical alignment on inclined beams
Overview of Types
General Information
Heavy-duty connection element, which in combination with grub screws (M8 or M10), are suitable for mounting pipes, ducts and equipment to steel beams (I-, T-, U and angle steel beams). The combination with a Universal Joint ss provides for vertically aligned attachment to inclined beams. Can serve as single mounting element, for installing crossbars and for fixing cantilever structures. Due to their special base profile, Beam Clamps TCS can also be slid along and retained in the opening of Sikla Channels MS 41.
Certification
Technical specifications
Material base body | Stainless Steel A4 |
Corossion class | CRC II – III (C4 – C5 acc. to DIN EN ISO 12944-2) |
Load range
Type | -VZ,perm. |
TCS 1 M10/M 8 A4 | 5,00 kN |
TCS 1 M10/M10 A4 | 5,00 kN |
TCS 1 M10/M12 A4 | 5,00 kN |
The nominal loads indicated apply to new Beam Clamps fixed to undamaged beam flanges only.
Software
This product is available in the following software.
Installation
Tighten the clamping bolt of the Beam Clamp first by hand, then tighten down with a spanner according to the mounting instructions. The hardened point of the clamping bolt will penetrate the comparatively soft material of the beam, ensuring a solid and highly secure connection. Tighten the locking nut for securing the installation.
Use an additional Holding Bracket HK 41 for mounting in the aera of the cutting edge of a channel.
Clamping range on parallel flange: 26 mm
Advice: Read relevant mounting instructions before installation!
