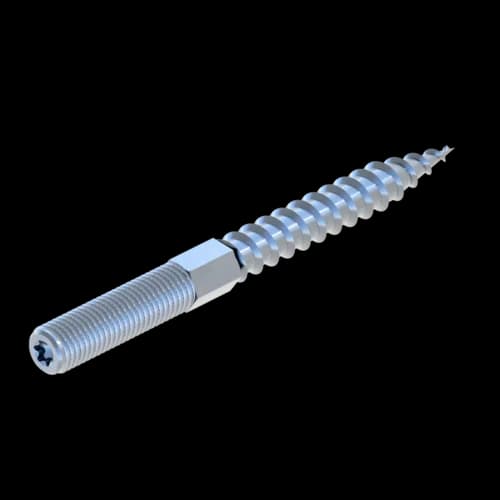

Bolt Screw BSCR

Group: 1315

For creating a metric threaded connection in wood-based materials or plastic dowels in masonry or concrete.

Select a Type

Overview of Types
General Information
Documents

Overview of Types

General Information

For creating a metric threaded connection in wood-based materials or plastic dowels in masonry or concrete.

Certification

Technical specifications

Material base body	steel
Surface	electro galvanized (Fe//Zn)
Corossion class	C2

Software

This product is available in the following software.

Documents

Brochures

Sikla Metal Anchor Systems
PDF (4.09MB)

Info	Type	L	Weight	Quantity	Part number
	BSCR M 8/ 50	80,00 mm	0,011 kg/pcs.	100 pcs.	124434

	BSCR M 8/ 80	100,00 mm	0,019 kg/pcs.	100 pcs.	124443

	BSCR M 8/100	120,00 mm	0,024 kg/pcs.	100 pcs.	124610

	BSCR M 8/120	140,00 mm	0,029 kg/pcs.	100 pcs.	124595

	BSCR M 8/140	160,00 mm	0,036 kg/pcs.	50 pcs.	124629

	BSCR M 8/160	60,00 mm	0,041 kg/pcs.	50 pcs.	124601

	BSCR M10/ 60	80,00 mm	0,021 kg/pcs.	100 pcs.	153469

	BSCR M10/ 80	100,00 mm	0,029 kg/pcs.	100 pcs.	124452

	BSCR M10/100	120,00 mm	0,038 kg/pcs.	100 pcs.	129554

	BSCR M10/120	140,00 mm	0,048 kg/pcs.	50 pcs.	124461

	BSCR M10/140	180,00 mm	0,059 kg/pcs.	50 pcs.	124470

	BSCR M10/180	-	0,078 kg/pcs.	50 pcs.	131522
