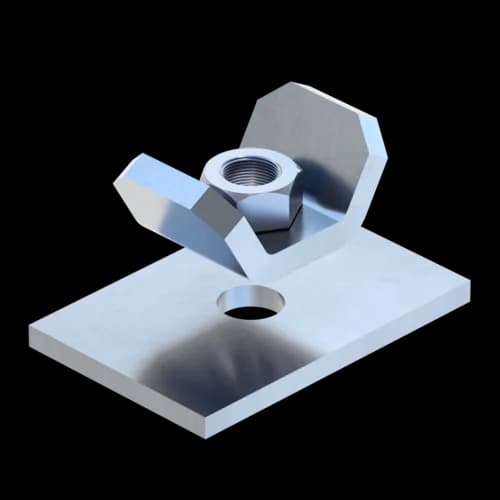

Clamp VBO C 40
Group: 1312
Developed for COFRASTA 40 composite ceilings
Suitable for single or crossbar mounting solutions
Mainly used in ventilation systems
Overview of Types
General Information
Developed for COFRASTA 40 composite ceilings. May be used for single or crossbar mounting solutions. The holder is mainly used in ventilation systems.
Certification
Technical specifications
Material base body | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Load range
Type | -VZ,perm. |
VBO C 40/ 0/M 8 | 2,00 kN |
VBO C 40/ 0/M10 | 2,00 kN |
Bei Traversen oder Grundplatten darf die Last entsprechend der Anzahl der im Verbund eingesetzten Halter erhöht werden. Die zulässige Belastung der Decke ist zu beachten.
Software
This product is available in the following software.

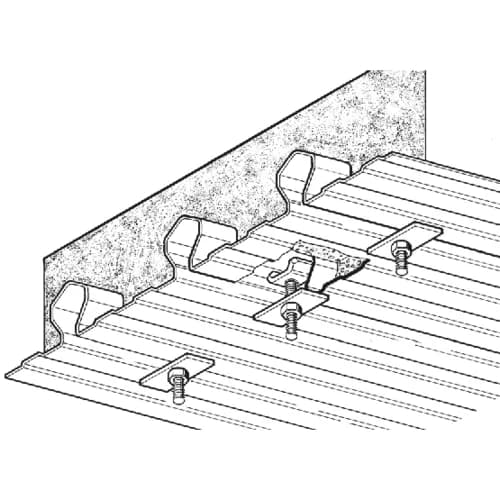

Installation
When mounting, make sure that the threaded rods are screwed in sufficiently and retained well, thus preventing any accidental unscrewing.
