Beam Clip SPA 5P HCP
Group: 1831
Universal clamping element for bi-lateral attachment of crossbars for pipe runs, ducts, cable lines and equipment to steel beams
Overview of Types
General Information
Universal clamping element for bi-lateral attachment of crossbars for pipe runs, ducts, cable lines and equipment to steel beams.
Certification
Technical specifications
Material base body | steel |
Surface | HCP |
Corossion class | C4 |
Load range
Type | -VX,perm. | VX,perm. | -VZ,perm. | VZ,perm. |
SPA 5P M12 HCP | 3,20 kN | 3,20 kN | 13,80 kN | 13,80 kN |
SPA 5P M16 HCP | 3,60 kN | 3,60 kN | 16,70 kN | 16,70 kN |
The specified F(z) data relate to the application of a standard hexagon bolt with strength class 8.8. The specified F(x) data relate to the worst case with flange thicknesses 30 mm (M12) or 40 mm (M16) as well as a coefficient of static friction µ(R) = 0.20. A possibly operating tensile force F(z) isn't included.
Software
This product is available in the following software.
Installation

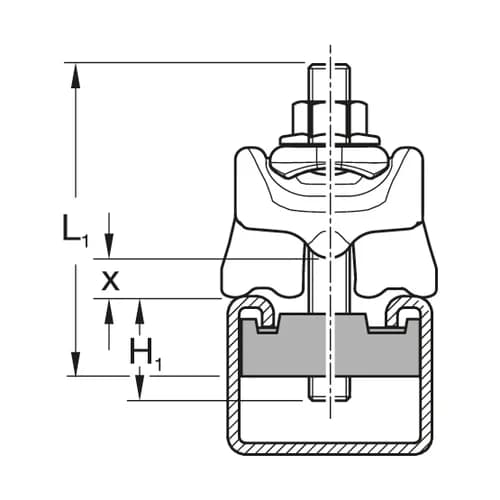

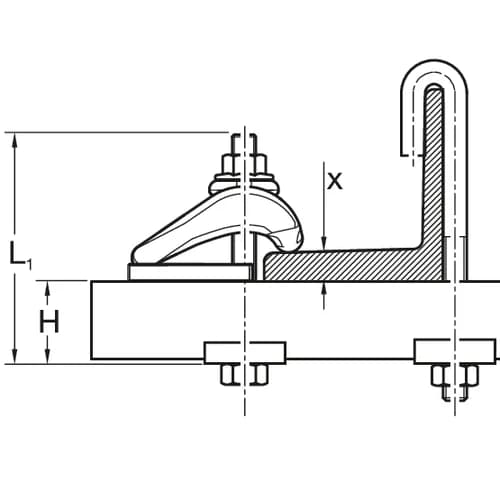

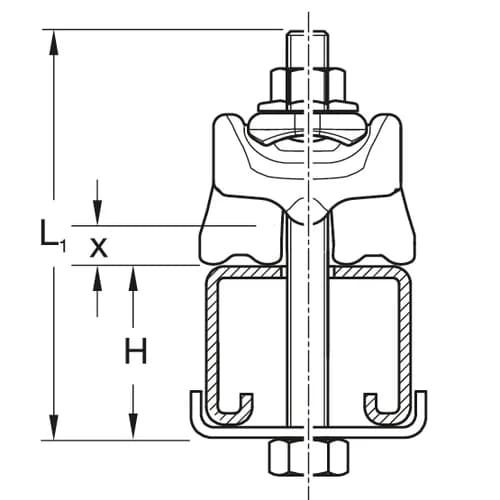

Position the Beam Clip with the slit side on the component, the lug has to be positioned on the steel girder. Then insert the appropriate hexagon bolt und tighten it with washer and nut.
Tightening torques:
| Type | Tightening torque MA [Nm] | Clamping range [mm] |
|---|---|---|
| M12 | 85 | 1 - 30 |
| M16 | 150 | 4 - 40 |
For further information on installation, see the document with installation instructions.
Documents
- Installation - Beam Clip SPA 5P HCP
PDF (0.16MB)
