Application

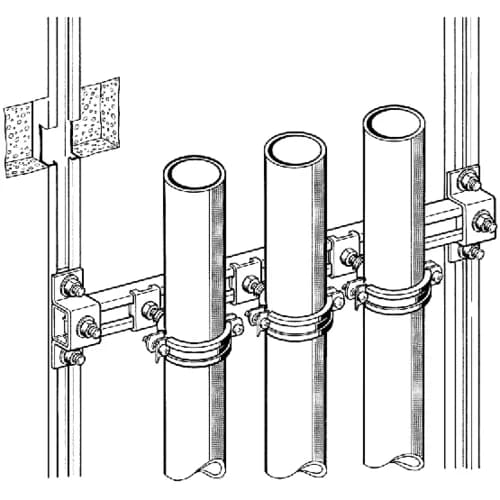

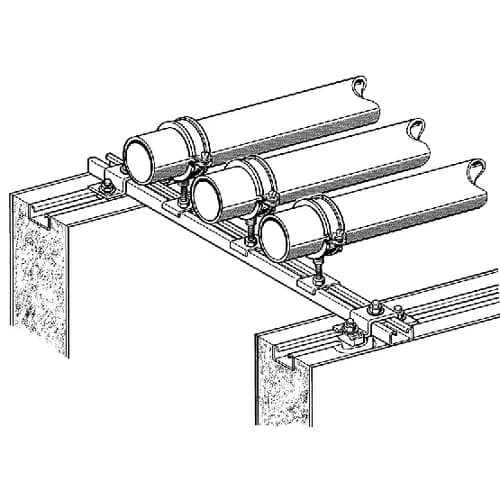

For fixing Sikla Channels:

  • directly to the building structure or
  • directly onto other channels for frame assembly.

When mounting the Channel Holder onto freestanding or embedded channels, we recommend the use of Speed Nut CC bolts.

Technical Data

Material:
Steel, electro-galvanised
Typeb x s
[mm]
L
[mm]
ø d1
[mm]
ø d2
[mm]
W
[kg]
Quantity
[pack]
Part
number

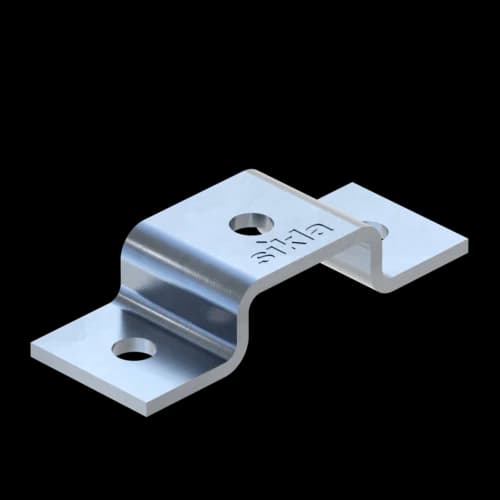

41/2140 x 48011110.1550 177338
41/3140 x 48011110.1850 113645

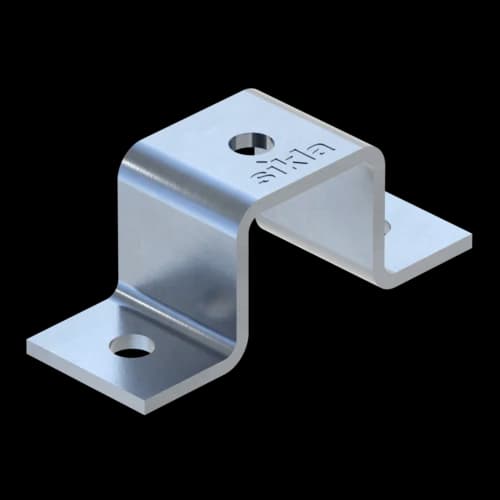

41/41 u, 41/21 D40 x 48011110.2050 177365
41/4540 x 48011110.2150 126791
41/5240 x 48011110.2350 177347

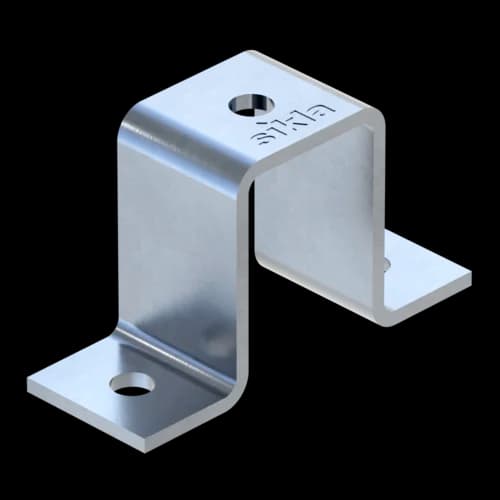

41/6240 x 48011110.2725 177356
41-75/6550 x 512013130.4325 177644

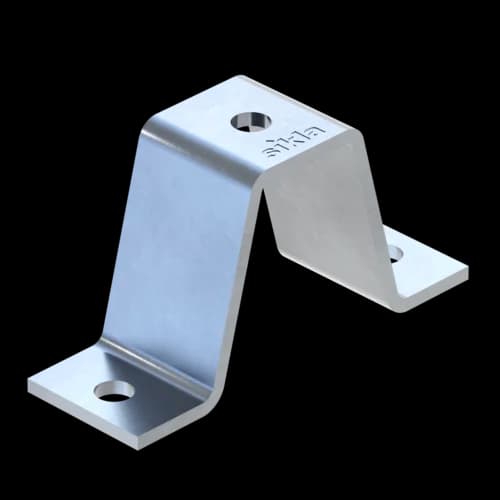

41-75/7550 x 512013130.4825 177662

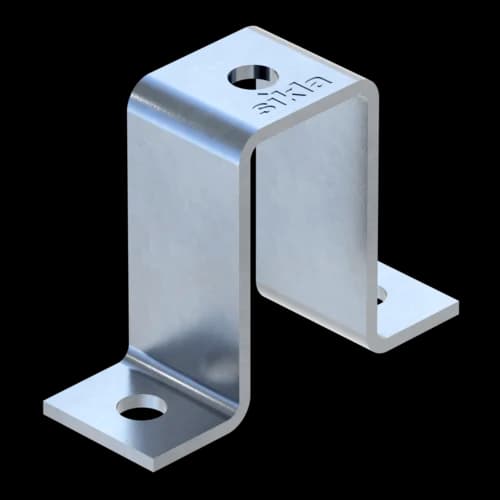

41/41 D40 x48011110.3010 177374
41/45 D40 x48413130.3310 125532
41/52 D40 x48413130.3810 177383
41/62 D40 x48413130.4210 163000
41-75/65 D50 x 512013130.6910 177671

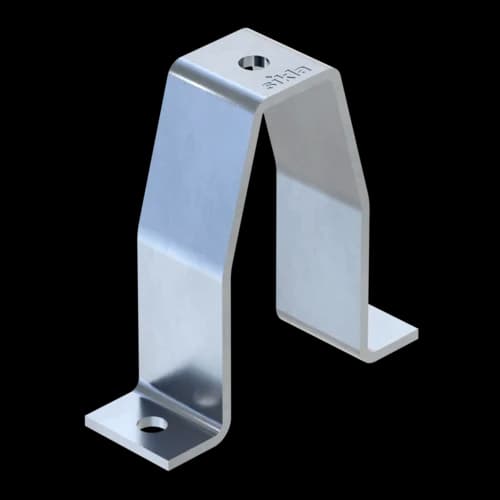

41-75/75 D50 x 512013130.7610 177680
