Pressix CC 41 - Assembly System

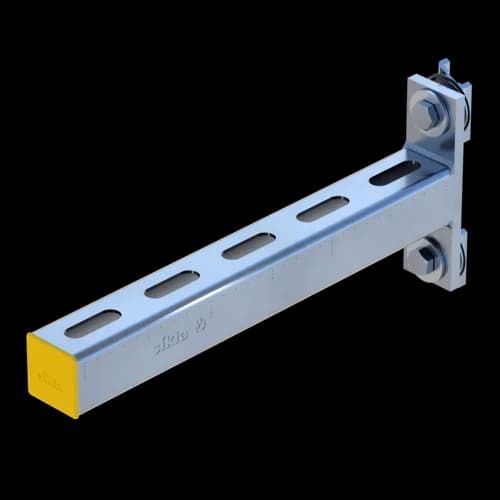

Cantilever Bracket CC

Application

Ready-to-use bracket mainly for mounting pipes or canal to channels.

Installation

When used in combination with Slide Elements, a Tie Rod is absolutely essential for absorbing the forces running along the centre line of the pipe.
For cantilever lengths ≥ 500 mm we recommend the integration of a prop-up.

Technical Data

Material:
Steel, electro-galvanised
TypeL
[mm]
Wall plate
[mm]
b
[mm]
W
[kg]
Quantity
[pack]
Part
number
CC 41/41-200196134 x 40 x 81000.7910 191792
CC 41/41-260258134 x 40 x 81000.9010 191801
CC 41/41-320321134 x 40 x 81000.9010 191819
CC 41/41-445446134 x 40 x 81001.2710 191828
CC 41/41-570571134 x 40 x 81001.8010 191837
CC 41/41-820821134 x 40 x 81002.001 191846
CC 41/41-10101008134 x 40 x 81002.871 191855
