Cantilever Bracket AK CC 41/41 - 570
Group: 1354
Part number 191837

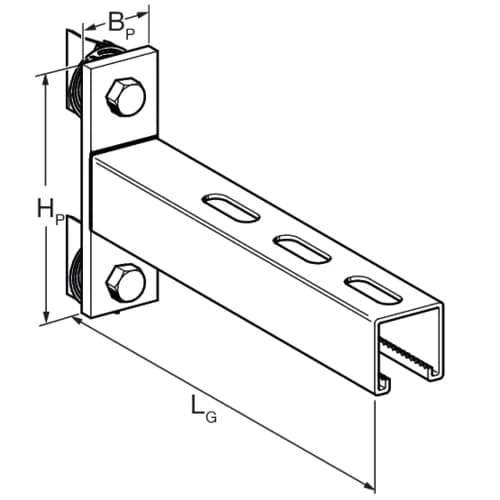

Ready-to-use bracket for single-arm mounting to Sikla Channel MS 41
Technical Data
BP | 40 mm |
HP | 134 mm |
LG | 570,5 mm |
Load range
-VX,perm. | 7,63 kN |
VX,perm. | 7,63 kN |
-VY,perm. | 4,26 kN |
VY,perm. | 4,26 kN |
-VZ,perm. | 4,94 kN |
VZ,perm. | 4,94 kN |
-MY,perm. | 0,65 kNm |
MY,perm. | 0,65 kNm |
-MZ,perm. | 0,24 kNm |
MZ,perm. | 0,24 kNm |
Technical specifications
Material base body | steel |
Surface | electro galvanized (Fe//Zn) |
Corossion class | C2 |
Certification
Installation
When used in combination with Slide Elements, a Tie Rod is absolutely essential for absorbing the forces running along the centre line of the pipe. For cantilever lengths >= 500 mm we recommend the integration of a prop-up.
