Pressix CC 41 - Assembly System

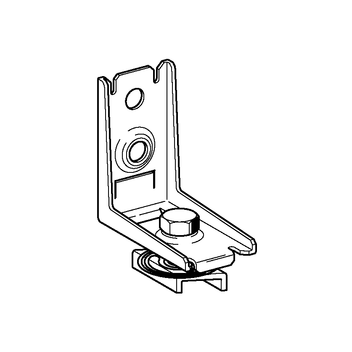

Angle Connector CN CC 41 Stabil
Pre-assembled connecting element for frame structures made of channels. Version W suitable for connections to wall, floor or ceiling.

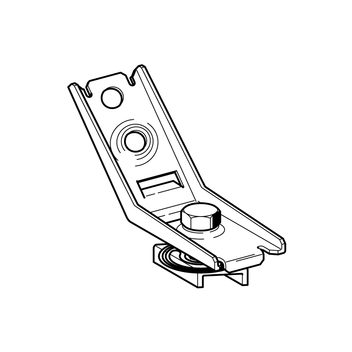

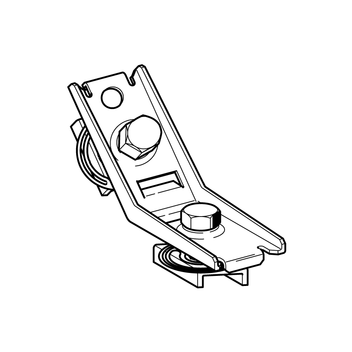

- High-speed assembly system for 90°- and 45°-structures of Channels MS 41.
- Locks automatically by pushing down the bolt head and at the same time supports its own weight
- Secure, form-locking, non-positive connection. Serrated speed nut with clamping bolt M10. Ideal shaping and high-strength material for high stiffness.
| Torque:|| 50 Nm|
| Material:|| Steel, pre-galvanised|
Approvals / Conformity
| ||This product has been awarded the RAL quality mark "pipe supports" and is subject to continuous external monitoring according to RAL GZ-655.|
