Application

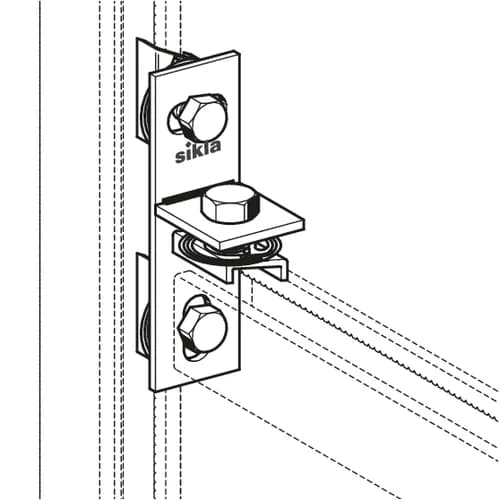

Connecting element for cross bars between two channels.

Note: Per cross bar always two T-Brackets have to be used.

Scope of delivery

Completely pre-assembled.

Technical Data

Material:
Steel, electro-galvanised
TypeFor channelWall plate
[mm]
W
[kg]
Quantity
[pack]
Part
number
CC - MH 4141/21 - 41/52135 x 40 x 40.3910 191756
CC - MV 4141/21 - 41/52135 x 40 x 40.3910 191765
