INNOVATIVE PIPE
SUPPORT SOLUTIONS
Pipe Clamps and Accessories

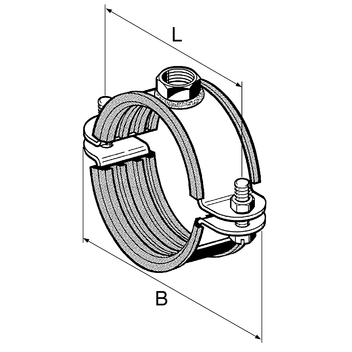

Stabil D-M16 w/ Silicone Lining

Application

For soundproof installation of pipes in M&E services and plant construction (as per DIN 4109).

Scope of delivery

With silicone sound absorption lining (red); with welded on M16 nut; clamping bolts and nuts included in loose form. Other welded nuts (e.g. M20) or inch sockets available on request.

Technical Data

Size range
[mm]
Max. adm.
load tension)
Tightening torque
[Nm]
315 - 407 9 kN 20

The max. admissible load has been determined by using statistical methods resulting from the breaking loads, observing a max. admissible deformation of 1.5 mm resp. 2 % of the max. tensible pipe dia.

Material:
Metal components:
Steel, electro-galvanised
Sound absorption lining:
Silicone (see chapter "Sound Absorption Products")
Size range
[mm]
Material
[mm]
Clamping
bolts
B
[mm]
L
[mm]
W
[kg]
Quantity
[pack]
Part
number
315 - 32450 x 5M16 x 604544043.081 146007
345 - 35650 x 5M16 x 604824323.131 146016
359 - 36850 x 5M16 x 604964463.571 146025
398 - 40750 x 5M16 x 605344843.661 146034
