INNOVATIVE PIPE
SUPPORT SOLUTIONS

Application

For installation of pipes required for M&E services and in plant construction.

Scope of delivery

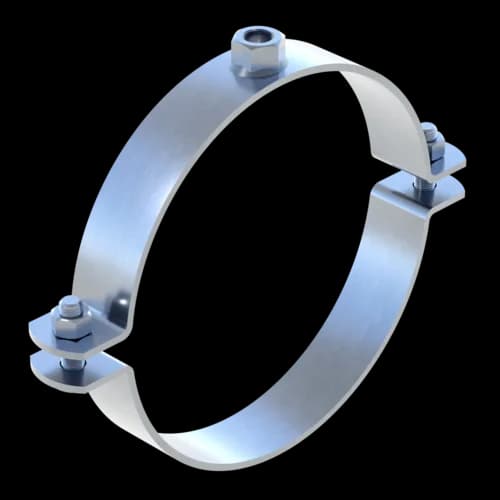

With welded M16 nut; clamping bolts and nuts included in loose form. Other welded nuts (e.g. M20) or inch sockets available on request.

Technical Data

Material:
Steel, electro-galvanised

Approvals / Compliance

FM-Approval for DN 218 - 277

Size range
[mm]
Material
[mm]
Clamping
bolts
B
[mm]
L
[mm]
W
[kg]
Quantity
[pack]
Part
number
218 - 22740 x 4M12 x 403012751.1810 118772
271 - 27740 x 4M12 x 403513251.4210 118198

316 - 32450 x 5M16 x 604403902.601 103844
348 - 35650 x 5M16 x 604714212.481 103862
360 - 36850 x 5M16 x 604834312.991 103871
399 - 40750 x 5M16 x 605204702.951 103905
411 - 41970 x 6M16 x 605324825.121 103914
500 - 50870 x 6M16 x 606195696.061 103941
513 - 52170 x 6M16 x 606315816.341 103950
