Pipe Clamps and Accessories

Pipe Loop RSL N Silicone

Application

For pipeline installations of fixed fire extinguishing systems, mainly used for Sprinkler systems for soundproof installations also according to DIN 4109.

Scope of delivery

Flange nut and Cup nut included in loose form.

Technical Data

Material:
Steel, galvanised as per DIN EN 10346
Sound absorption lining:
Silicone, red (see chapter "Sound Absorption Products")

Pipe Loop N m.E. Silikon 3/4" - 8" - G4850035 VdS PDF | 624.5 KB

Approvals / Compliance

VdS (No. G4850035) approved.

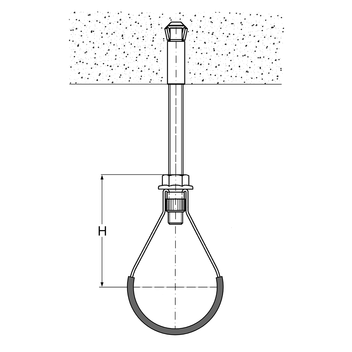

TypeNBConnectionH
[mm]
W
[kg]
Quantity
[pack]
Part
number
26.93/4"M8650.06100 113307
33.71"M8650.07100 113308
42.41 1/4"M8700.0850 113309
48.31 1/2"M8790.0950 113310
60.32"M10980.1725 113311
76.12 1/2"M101130.2325 113312
88.93"M101420.2525 113313
114.34"M121530.2825 113314
139.75"M121840.3125 113315
168.36"M121840.3125 113316
219.18"M162360.6510 113317
