Application

Additional connection options for all Sikla Pipe Clamps equipped with 3G triple thread nut, fixed points and threaded tubes.

Technical Data

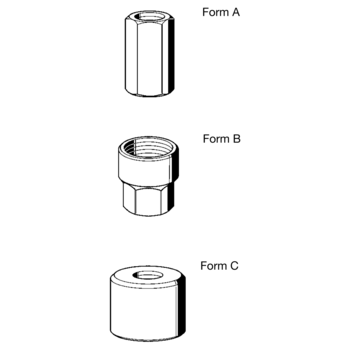

Material:
Form A:
Steel, electro-galvanised
Form B:
Malleable cast iron, electro-galvanised
TypeFormLength
[mm]
A/F
[mm]
W
[kg]
Quantity
[pack]
Part
number
M16/M10A35190.0550 106740
M16/M12A35190.0450 124665
M16/M16A30190.0350 106290
3/8"/M16A40190.0325 146335
1/2"/M10A35240.0710 146371
1/2"/M12A35240.0625 156639
1/2"/M16A40240.0725 124656
1/2"/3/8"A40240.0625 146344
1/2"/1/2"A35240.1110 146380
3/4"/M10A35320.1510 105651
3/4"/M12A35320.0810 105749
3/4"/M16A35320.1410 105660
3/4"/3/8"A35320.1425 146353
3/4"/1/2"A35320.0810 146399

1"/M10B40220.1310 105679
1"/M12B40220.1310 105758
1"/M16B40220.1210 105688
1"/3/8"B40220.1225 146362
1"/1/2"B40270.1210 146405

M16/1/2"C25-0.0625 157922
M16/3/4"C28-0.0925 157931
3/8"/M16C100-0.1120 111715
3/8"/1/2"C100-0.1920 113349
