High Corrosion Protected Products

Channel Connector SK-L HCP

Application

Element for connecting Channels. The multiple bearing of the Channel is to be secured. The Channel Connector should not to be used between the last two bearing points. In combination with Channels > 41/21 the admissible limit has to be respected.

Installation

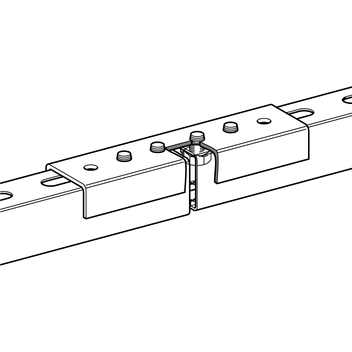

Position the Channel Connector on the back of the channel and bolt together the channel ends (through the channel slots) by means of each two Self Forming Screws FLS F 80.

Technical Data

Max. adm. limit/ flexion:
300 Nm
Material:
Steel, HCP
TypeFor channelChannel height
hmax [mm]
Overall length
[mm]
W
[kg]
Quantity
[pack]
Part
number
SK-L41621800.3610 198971
