Ducting Supports

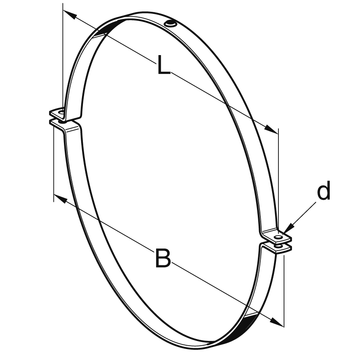

Ducting Clamp PLU > DN 560

Application

Ducting Clamp designed for installing spiral-seam ducts according to DIN 24145 for industrial ventilation systems.

Scope of delivery

Without bolts and nuts. Without connection nut.

Installation

Basically, two-sided fixing to threaded rods is recommended.

NB 560 - NB 900 : M12
From NB 1000 on: M16

Technical Data

Material:
Steel, pre-galvanised according to DIN EN 10346

Type
perm. Working load
560 - 900 1,5 kN
1000 - 1250 2,5 kN
Type / NBMaterial
[mm]
B
[mm]
L
[mm]
d
[mm]
W
[kg]
Quantity
[pack]
Part
number
56030 x 2.5630 60412.51.101 121848
60030 x 2.5672 64612.51.181 149116
63030 x 2.570267612.51.231 121857
71030 x 2.5782 75612.51.381 121866
80030 x 2.5872 84612.51.551 121875
90030 x 2.5972 94612.51.731 121884
100040 x 3.01076105012.53.081 121893
112040 x 3.01196117012.53.431 121909
125040 x 3.01325129912.53.821 121918
