Ducting Supports

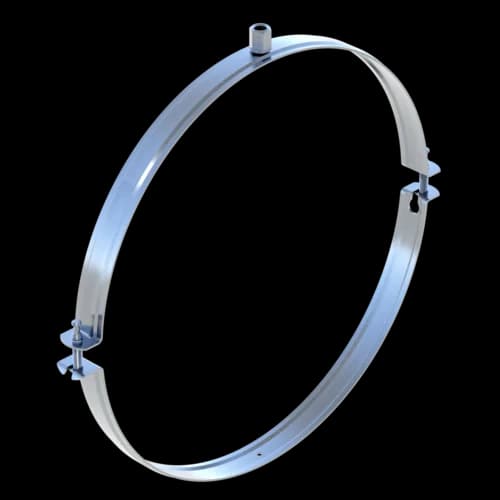

Ducting Clamp PLU 2G-N

Application

Two-piece pipe clamp for simple installation of spiral-seam ducts.

Scope of delivery

Clamping bolts are pre-mounted and retained. Pivot screw for safe and simple assembly with quick-set clip, suitable for "single-hand" mounting. Easier handling and better storage possibilities due to optimized packaging.

Installation

Tighten upper part of the pipe clamp without the interfering lower part.

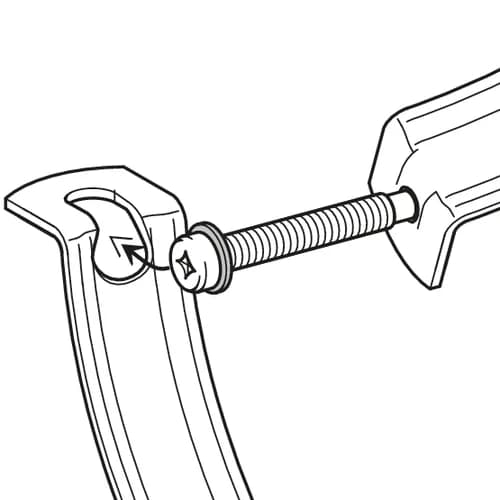

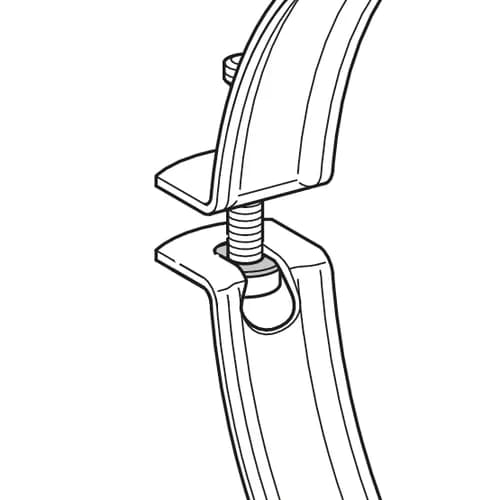

Hook the lower part, provided with a keyhole, into the fixed clamping bolt (see picture). After mounting of the pipe and locating into the pivot screw, the clamping bolt is fixed behind the bending; then tighten clamping bolt with max. 2 Nm.

Technical Data

Type
Material
[mm]
Perm. load capacity
[kN]
Thread
connection
71 - 200 20 x 1.5 0.8 M8/M10
224 - 500 25 x 1.5 1.0 M8/M10

Material:
Steel, galvanised
TypeW
[kg]
Quantity
[pack]
Part
number
710.0950 199626
800.1050 199633
900.1050 199640
1000.11100 199657
1120.12100 199664
1250.13100 199671
1400.1480 199688
1500.1580 199695
1600.1680 199701
1800.1750 199718
2000.1850 199725
2240.3450 199732
2500.3740 199749
2800.3840 199756
3000.4140 199763
3150.4540 199770
3550.4740 199787
4000.5630 199794
4500.5820 199800
5000.6720 199817
