Ducting Supports

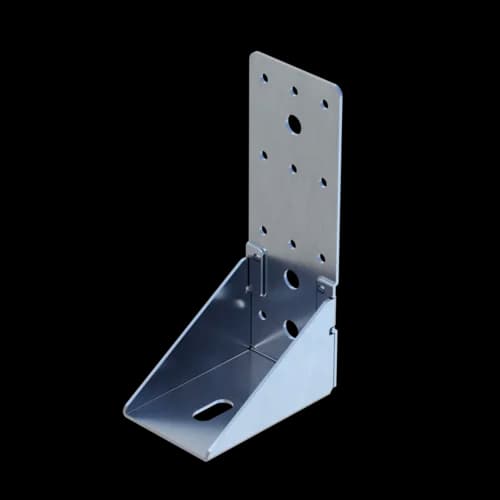

Ducting Angle LUW Stabil

Application

Mounting element for rectangular, particularly for vertically running ducts. In combination with Sound Absorber SDE 1 suitable for soundproof fixing of ducts according to DIN 4109.

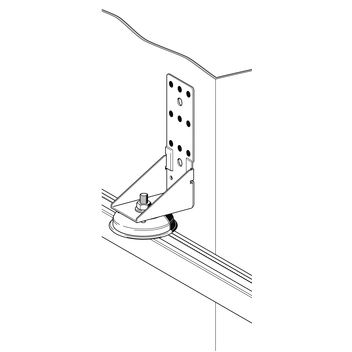

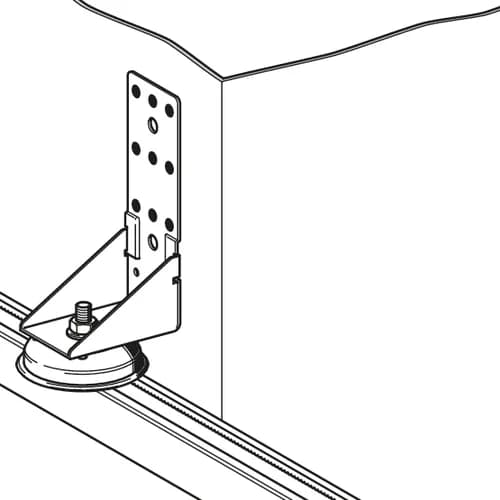

Installation

Fixation to duct with rivets (5 mm) or M10 bolts.

Technical Data

Max. Working Load:
2 kN, when bolted at fixing points A and B
Material:
Steel (60 x 2 mm), pre-galvanised according to DIN EN 10346
TypeW
[kg]
Quantity
[pack]
Part
number
170/900.3010 158534
